T-grid Linear light

Illuminate your space with our innovative T-grid linear light, the perfect solution for modern ceiling designs.

This sleek LED fixture seamlessly integrates into standard 15/16" or 9/16" T-grid suspended ceilings, replacing cross tees for a clean, streamlined look. Offering high efficacy of up to 130lm/W and customizable color temperatures, our T-grid linear light delivers uniform, glare-free illumination ideal for offices, retail spaces, and healthcare facilities.

Transform your ceiling into a canvas of light with our T-grid linear light fixture, designed to enhance both aesthetics and functionality in any commercial or institutional setting.


Mastering T-grid/T-bar Linear Light with Driver (2ft & 4ft): A Comprehensive Guide for Modern Spaces

When it comes to illuminating modern spaces efficiently and effectively, the T-grid/T-bar Linear Light with Driver (2ft & 4ft) emerges as a standout solution. These sleek, energy-efficient LED fixtures are designed specifically for suspended ceiling systems, offering seamless integration, uniform illumination, and minimal maintenance. Whether you’re outfitting an office, school, hospital, or retail space, understanding the key features and installation process of these lights can make all the difference. From built-in drivers to dimmable options, this guide covers everything you need to know about T-grid/T-bar Linear Lights.

What is a T-grid/T-bar Linear Light with Driver (2ft & 4ft)?

A T-grid/T-bar Linear Light with Driver is an energy-efficient LED lighting solution designed for suspended ceiling systems (also known as T-grid or T-bar ceilings). These slim-profile fixtures come in 2ft and 4ft lengths and feature an integrated driver for seamless operation.

Key features include:

Built-in driver: Eliminates the need for external ballasts, simplifying installation.

Uniform illumination: Edge-lit or backlit technology minimizes glare.

Grid compatibility: Fits standard 15/16" or 9/16" ceiling T-bars.

Dimmable options: Works with 0-10V/DALI controls (varies by model).

Common applications: offices, schools, hospitals, and retail spaces where even light distribution and minimal maintenance are priorities.

How to Install: Step-by-Step Workflow from Unboxing to Ceiling Integration

Tools needed: Wire strippers, screwdriver, voltage tester, ladder.

1. Unboxing & Inspection

Check for damage.

Verify parts (fixture, mounting clips, wiring harness).

2. Power Preparation

Turn off electricity at the circuit breaker.

Use a voltage tester to confirm wires are dead.

3. Mounting the Light

Align the fixture with the T-grid rails.

Secure with included spring clips or screws.

4. Wiring

Connect the driver’s input wires to ceiling wires (black to black, white to white).

Cap with wire nuts.

5. Final Check

Restore power and test the light.

Adjust positioning if needed.

Pro Tip: For 4ft models, ensure ceiling supports can handle the weight (>5 lbs).

How the Integrated Driver Powers the Light

The integrated driver (also called LED driver) is the "engine" of the fixture. Here’s how it works:

1. AC to DC Conversion: Converts 120V/277V AC input to low-voltage DC (e.g., 24V/48V) for LEDs.

2. Current Regulation: Maintains stable power flow to prevent flickering.

3. Protection Features:

Surge suppression against voltage spikes.

Thermal cutoff to avoid overheating.

Why it matters:

Longer LED lifespan (50,000+ hours).

No compatibility issues (driver is pre-matched to the light).

Installation Notes:

Avoid bathrooms/saunas (unless rated for damp locations).

Ensure attic/plenum spaces have ventilation if installed above ceilings.

How to Clean T-grid/T-bar Linear Lights Safely

Tools Needed: Microfiber cloth, mild detergent, water, soft brush (optional).

Step-by-Step Cleaning Process:

1. Turn Off Power

Switch off at the circuit breaker to avoid electrical hazards.

2. Dust Removal

Use a dry microfiber cloth or soft brush to remove loose dirt.

3. Spot Cleaning

Dampen a cloth with water + mild soap (no harsh chemicals).

Gently wipe the diffuser and housing.

4. Drying

Let the fixture air-dry completely before restoring power.

Avoid These Mistakes:

Spraying water directly (can seep into electronics).

Using abrasive cleaners (scratches the surface).

Disassembling the fixture (voids warranty).

Why Choose T-grid Linear?

Seamless grid integration

Better for long, narrow spaces (hallways, workstations)

More modern aesthetic than bulky panels

This article provides an in-depth look at the T-grid/T-bar Linear Light with Driver (2ft & 4ft), an innovative LED lighting solution designed for suspended ceilings. These fixtures feature an integrated driver for simplified installation, uniform illumination, and compatibility with standard T-bars. The guide walks you through a step-by-step installation process, explains how the integrated driver powers the light, and highlights the ideal temperature and humidity levels for optimal performance. It also addresses limitations in extreme conditions and offers practical tips for safe cleaning and maintenance. By comparing T-grid Linear Lights with panel lights and downlights, the article underscores their unique advantages, making them a perfect choice for modern commercial and residential spaces.

3 products
Sort by
Sort by
T-grid linear light 2 ft TB2-DM-XXF-CP T-grid_linear_light_application_2
T-grid Linear light
Sale priceFrom $58.00

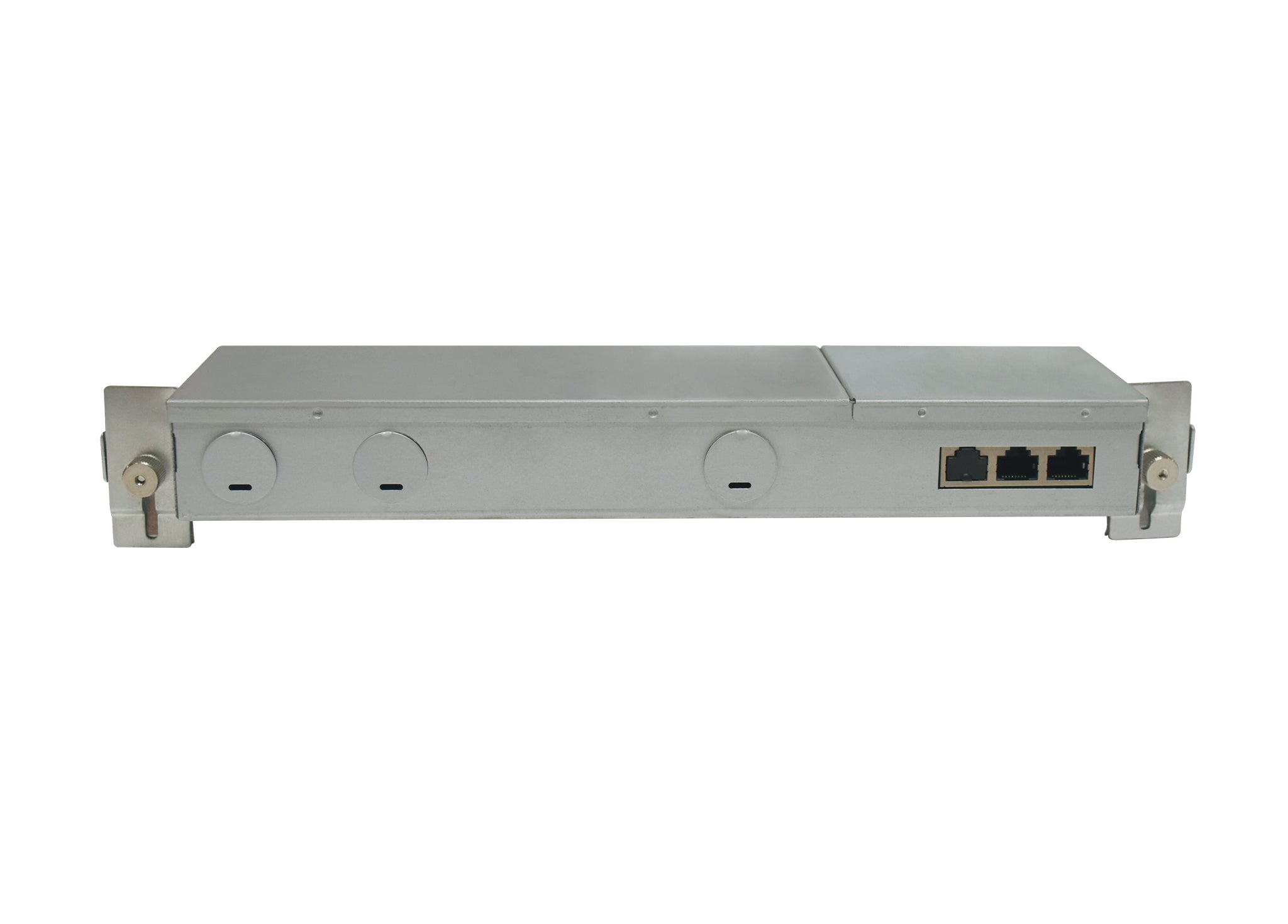

T-grid Linear light driver T-grid_linear_light_driver_on_T-grid
