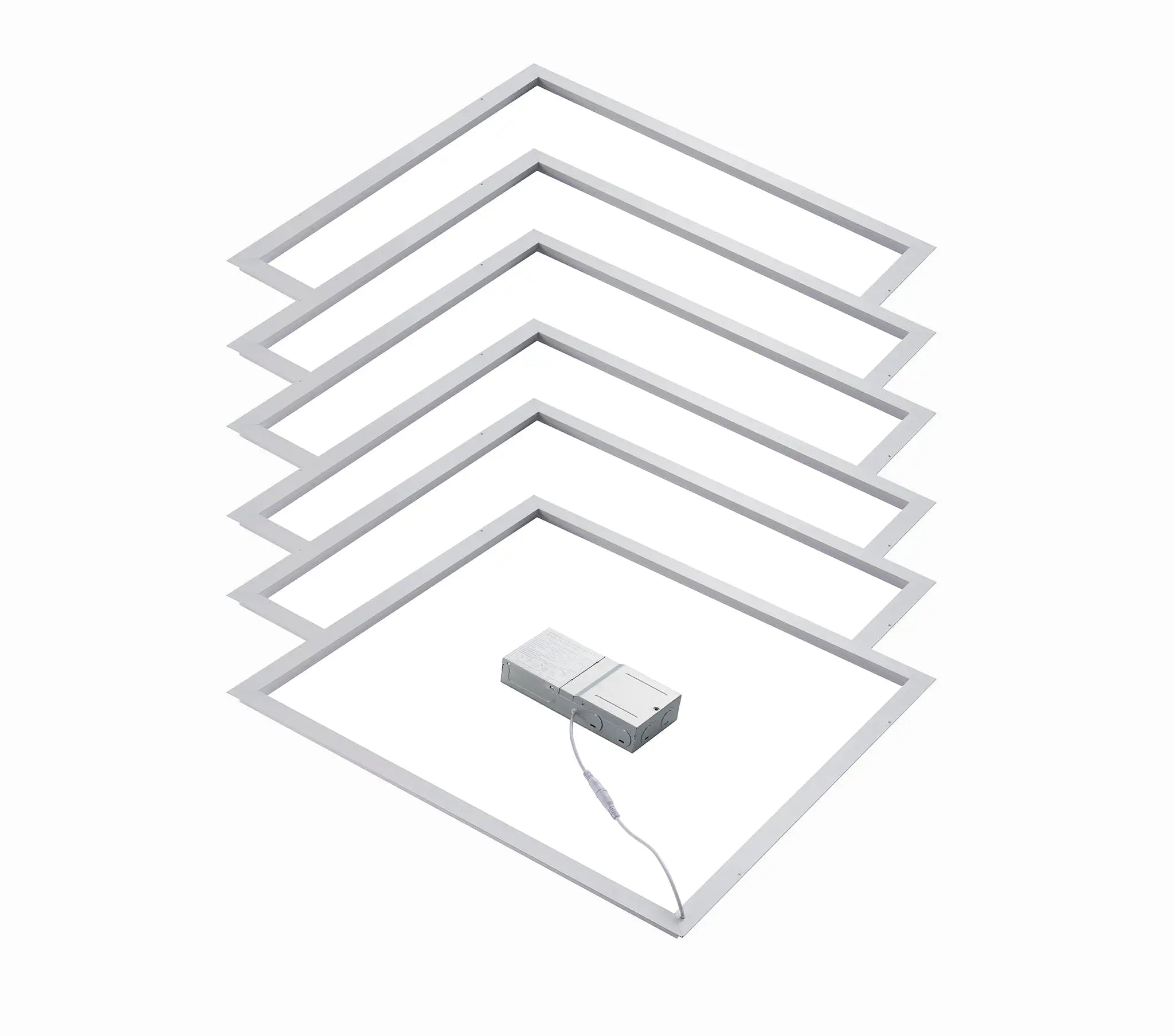

2x2 LED Frame Light (6Pack) 20W/30W/40W Adjustable 3k/3.5k/4k/5k/6.5k
Choose options
Description
- 2x2 ft edge-Lit Frame LED panel lights, 3 wattage and 5 CCT adjustable, 120-277V.
- 20W/30W/40W and 3000k/3500k/4000k/5000k/6500k adjustable.

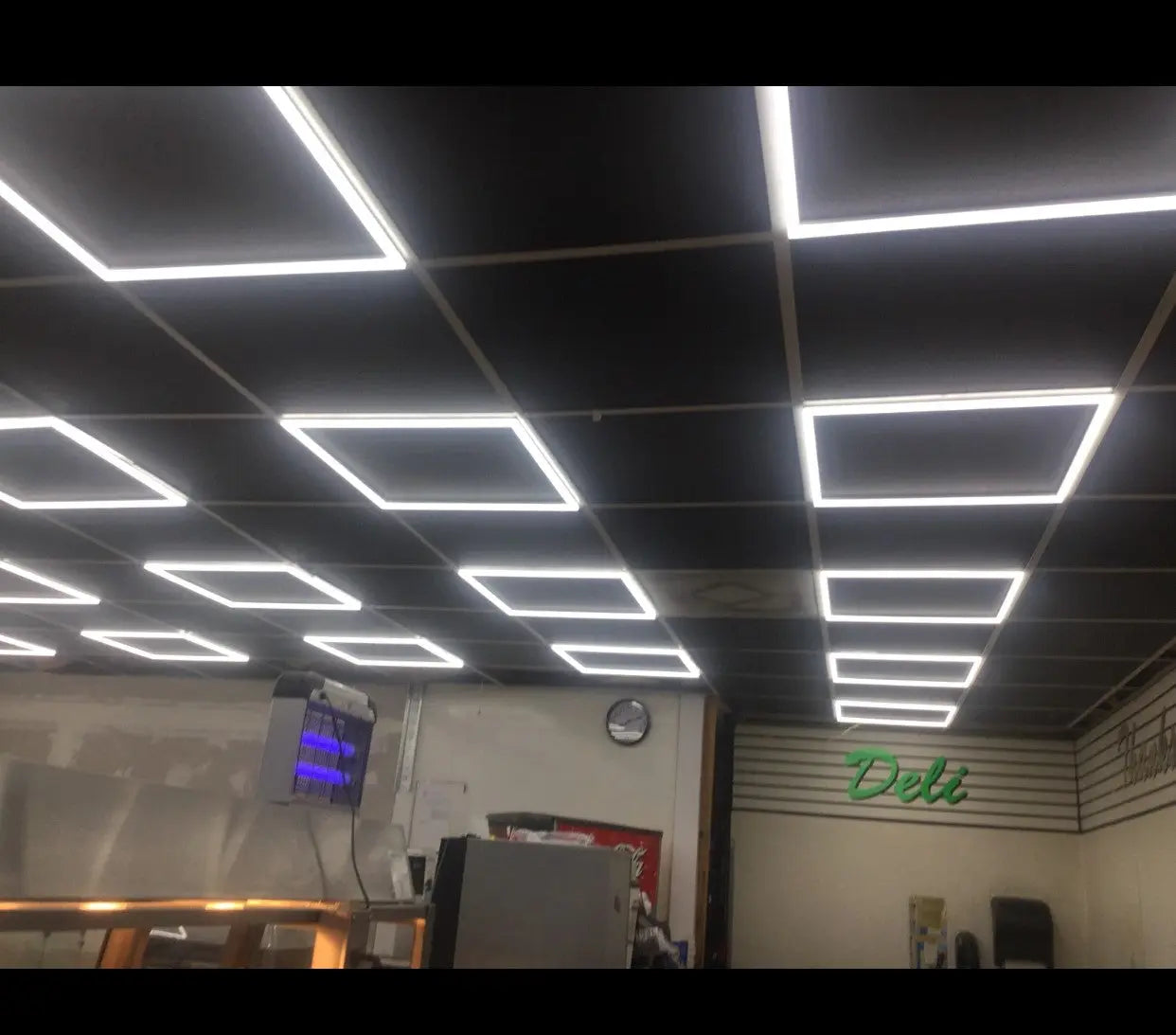

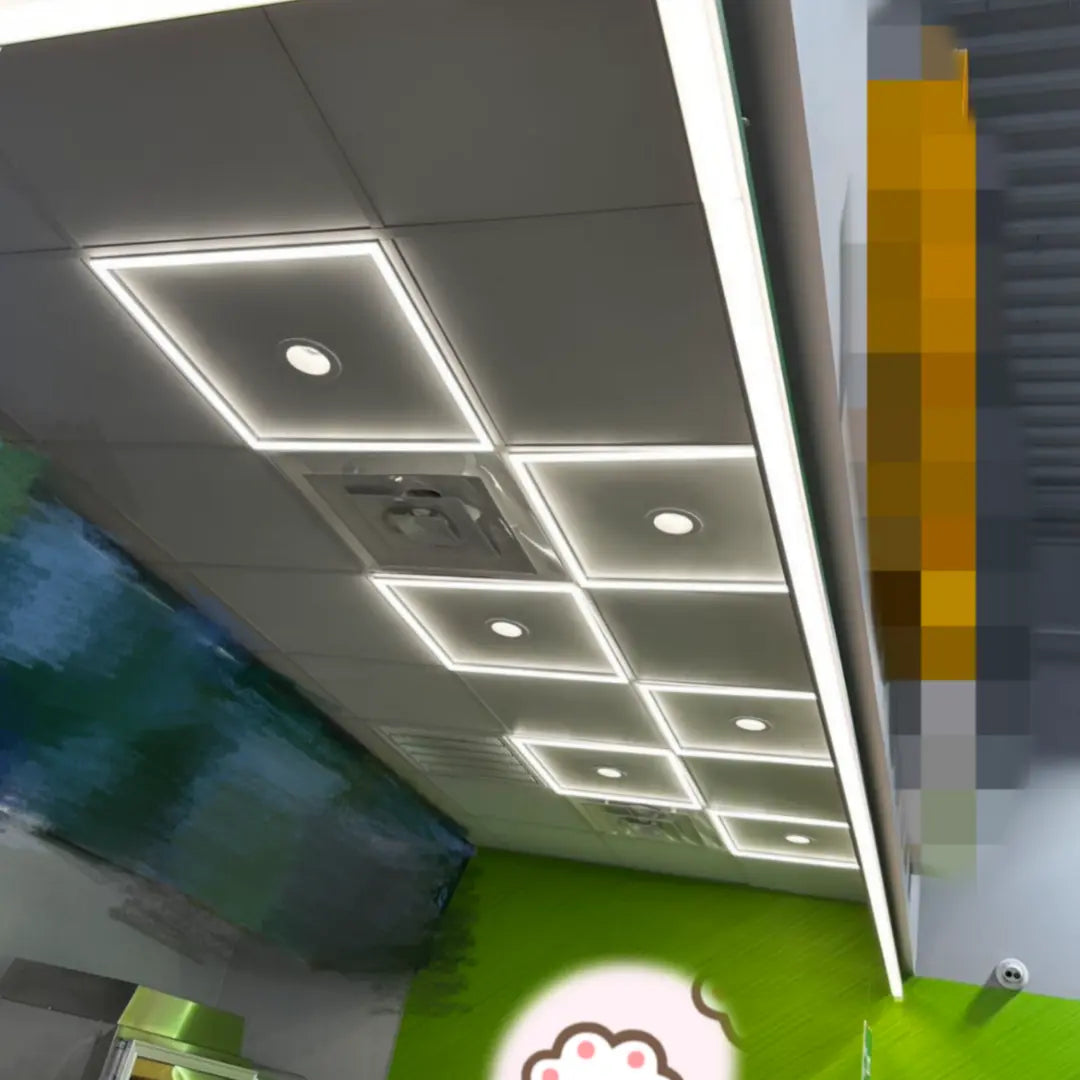

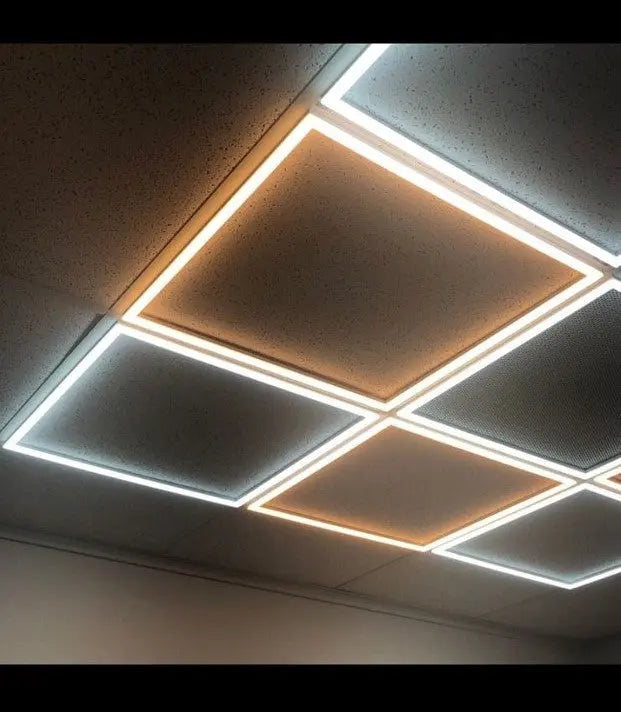

- Available in 2x2 and 2x4, LED T-grid edge-lit Frame led panel light (T-bar light/T-grid light) is a perfect alternatives to LED flat Panel light/LED Troffer light. Our LED Frame light is wattage and CCT adjustable and it sits on a T-grid and illuminates on its edge. The installation of the LED frame lights gives your property a unique, high-end and beautiful appearance.
Feature
- Enhance Property Appearance: Designed to improve the look of any property, our LED frame light provide a modern and stylish lighting solution that make your interior look high-end and beautiful.
- Wattage and CCT adjustable: Our LED Frame light is 3 wattage and 5 CCT adjustable, meeting the needs of any applications or settings.
- Easy Installation: LED Frame light is light weight, even the 2x4 LED frame light (excluding the driver) is less than 3 lb. and are designed to sit on T-grid securely, making installation easy and hassle free.
- Dimmable: On top of wattage and CCT adjustable features, our frame lights are also 0-10V dimmable.
- 5-Year Warranty: We offer a comprehensive 5-year warranty, ensuring long-lasting performance and peace of mind.
- Energy Efficient: Our LED Frame lights use significantly less energy compared to traditional lighting, reducing your electricity bills. We will demonstrate how much energy will be saved using our frame lights using the graphs below.
- High Lumen Output: Because of its energy efficiency, the LED frame light has high lumen output even set at a small wattage.
- Long Lifespan: With a lifespan of 50,000 hours, our LED frame lights last significantly longer than traditional fixtures.
- Eco-Friendly: Eco-Friendly: Unlike fluorescent and compact lights (CFLs), LED lights do not contain mercury, harmful gases or other hazardous materials, making them safer for the environment and easier to dispose. The combined effect of lower energy consumption and longer lifespan means LEDs have a smaller carbon footprint over their lifecycle compared to other lighting types.
Specification
| Wattage | 20W/30W/40W | Voltage: | 120-277V |
|---|---|---|---|
| Cover | Lens | Certificate | ETL&DLC |
| CCT |
3000k/3500k/4000k/ 5000k/6000k |
Lifespan | 50,000 hours |
| Lumen/W | 130lm/W | CRI | >80 |
| Carton size | 26X 14.4 X 8.5 inches | Dimmable | Yes |
| Carton weight | 14.5 lb | Warranty | 5-year |
Energy consumption comparison
| LED Frame Light | Wattage | Fluorescent fixture | Wattage |
|---|---|---|---|
| 2x4 Frame Light | 40W-60W | 2x4 fluorescent | 96W-128W + Ballast wattage |
| 2x2 Frame Light | 20W-40W | 2x2 fluorescent | 36W-72W+ ballast wattage |
2x2 LED Frame Light: Features, Applications, and Optimal Usage
A 2x2 LED Frame Light is an innovative lighting solution that offers high efficiency, durability, and flexibility for various professional and commercial applications. Whether used in photography, videography, architectural lighting, or live events, this LED panel provides consistent illumination with adjustable brightness and color temperature. Its lightweight yet sturdy frame, combined with energy-saving LED panels and diffusers, ensures even light distribution and minimal glare. Designed for versatile mounting and optimal performance, a 2x2 LED Frame Light can be easily positioned to suit different lighting needs. Understanding its structure, working principles, and suitable environments is essential for maximizing its benefits. In this article, we will explore the key features, applications, and best practices for using a 2x2 LED Frame Light effectively.
What is a 2x2 LED Frame Light?
A 2x2 LED Frame Light is a versatile lighting solution designed for various applications, from photography and videography to architectural lighting. This type of light features a square frame measuring 2 feet by 2 feet, which houses an array of LED bulbs. The frame is typically lightweight and portable, making it easy to set up and move around as needed. The LEDs are known for their energy efficiency, long lifespan, and ability to produce consistent, high-quality light.
The 2x2 LED Frame Light is often used in professional settings where precise lighting control is essential. It can be dimmed, adjusted for color temperature, and even programmed for specific lighting effects. This makes it a popular choice for studios, film sets, and even live events where lighting needs can change rapidly.
2x2 LED Frame Light Structure and Components
The structure of a 2x2 LED Frame Light is relatively simple but highly effective. The main components include:
Frame: The 2x2 frame is usually made from lightweight materials like aluminum or high-grade plastic, ensuring durability without adding unnecessary weight.
LED Panels: Inside the frame, you’ll find LED panels that house the individual LED bulbs. These panels are designed to distribute light evenly across the entire surface.
Diffuser: A diffuser is often placed over the LED panels to soften the light and eliminate harsh shadows. This is particularly important in photography and videography.
Power Supply: The light is powered by an external power supply, which can be adjusted to control brightness and color temperature.
Mounting Options: Many 2x2 LED Frame Lights come with various mounting options, such as stands, clamps, or brackets, allowing for flexible placement.
How Does a 2x2 LED Frame Light Work?
Understanding how a 2x2 LED Frame Light works can help you make the most of its features. Here’s a step-by-step breakdown:
1. Power On: Connect the light to a power source and turn it on. Most models have a simple on/off switch.
2. Adjust Brightness: Use the dimmer control to set the desired brightness level. This is crucial for achieving the right lighting for your specific needs.
3. Set Color Temperature: Adjust the color temperature to match the environment or the mood you want to create. This can range from warm (yellowish) to cool (bluish) light.
4. Position the Light: Use the mounting options to position the light where it’s needed. This could be above, below, or to the side of your subject.
5. Diffuse the Light: If necessary, attach or adjust the diffuser to soften the light and reduce harsh shadows.
Applications of 2x2 LED Frame Light
The 2x2 LED Frame Light is incredibly versatile and can be used in a variety of settings:
Photography: Ideal for portrait, product, and studio photography where controlled lighting is essential.
Videography: Used in film and video production to provide consistent lighting for scenes.
Architectural Lighting: Can be used to highlight architectural features or create ambient lighting in large spaces.
Live Events: Perfect for stage lighting, concerts, and other live events where dynamic lighting is required.
Commercial Spaces: Often used in retail stores, galleries, and museums to highlight products or artworks.
Optimal Work Environment for 2x2 LED Frame Light
To get the best performance out of your 2x2 LED Frame Light, consider the following optimal work environment conditions:
Temperature: LED lights perform best in moderate temperatures. Avoid using them in extremely hot or cold environments.
Ventilation: Ensure there is adequate ventilation around the light to prevent overheating.
Power Supply: Make sure you have a stable power supply to avoid flickering or inconsistent lighting.
Space: Ensure you have enough space to position the light correctly. This is especially important in photography and videography where lighting angles are crucial.
Safety: Keep the light away from flammable materials and ensure it’s securely mounted to prevent accidents.
By understanding these key aspects, you can maximize the effectiveness of your 2x2 LED Frame Light in any setting.
The 2x2 LED Frame Light is a powerful tool for professional lighting setups, offering energy efficiency, adjustability, and portability. Its versatile design and customizable settings make it ideal for photographers, videographers, architects, and commercial users looking for reliable illumination. To ensure optimal performance, it is crucial to use the light in well-ventilated environments, maintain a stable power supply, and follow proper mounting techniques. Whether for studio photography, live events, or ambient architectural lighting, the 2x2 LED Frame Light delivers consistent brightness and superior performance, making it a must-have lighting solution for various industries.
