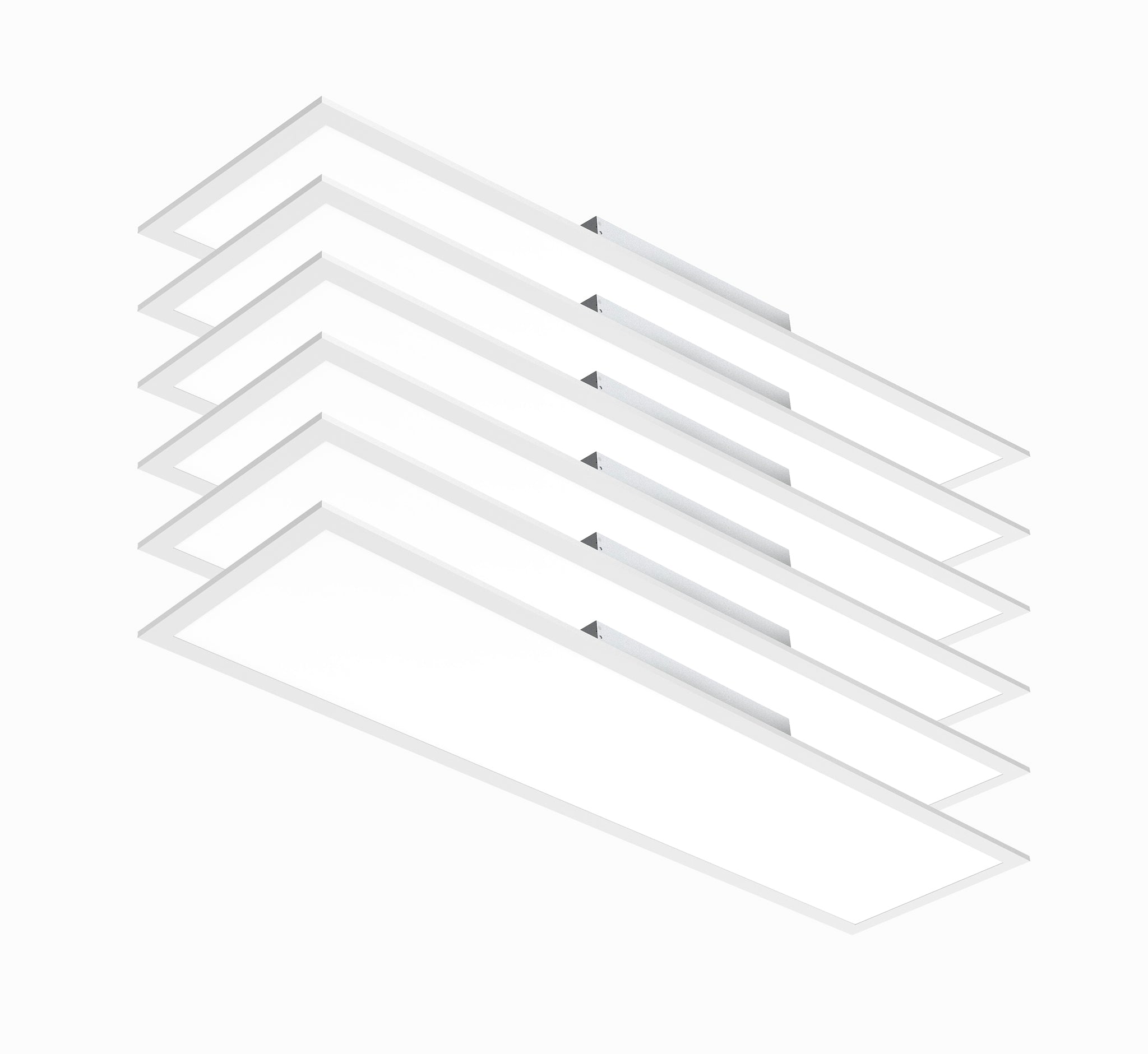

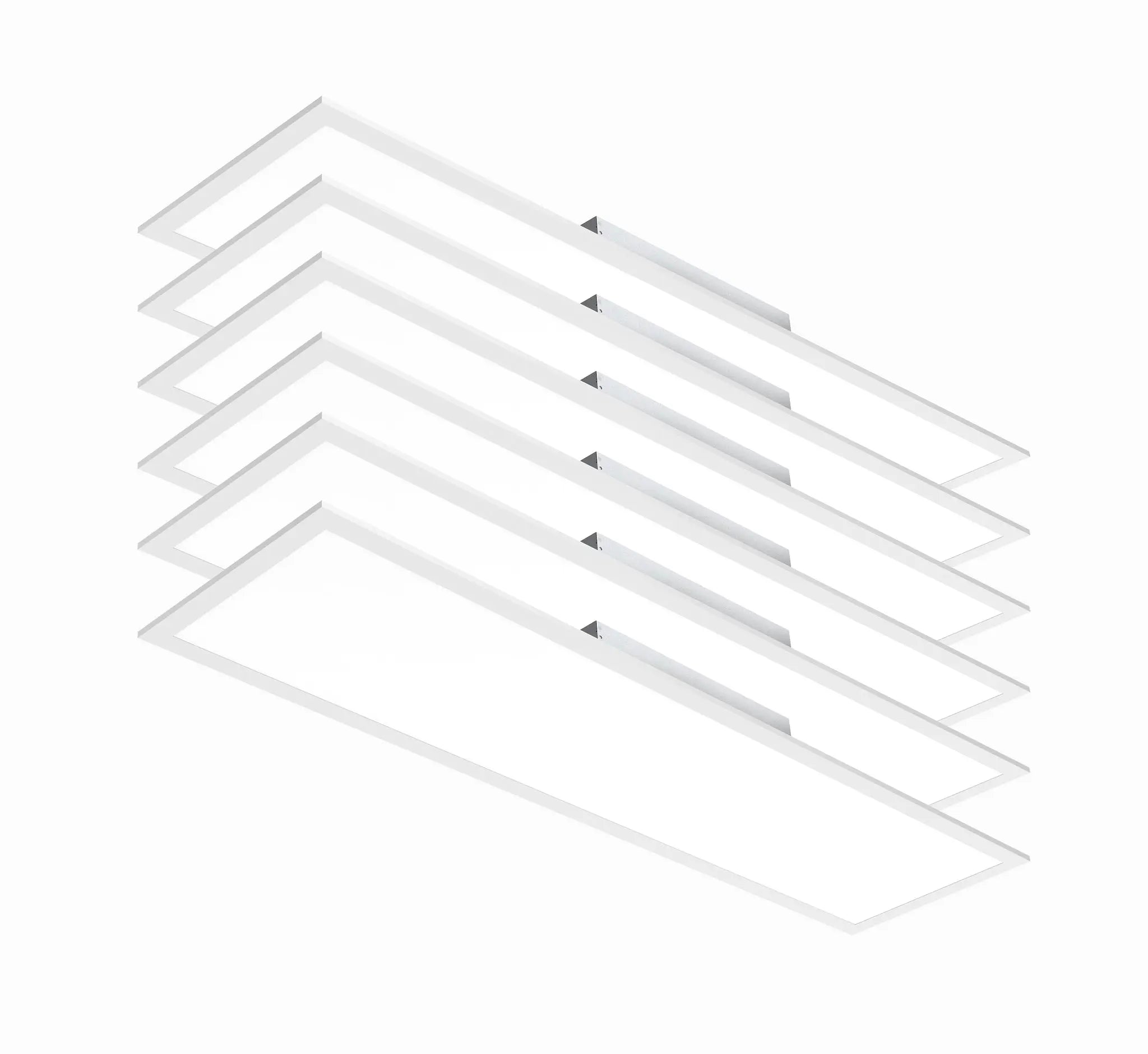

1x4 LED Panel Light (6Pack) 20W/30W/40W Adjustable 3k/4k/5k
Choose options
Description
- Our 1x4 LED Panel lights are 3 wattage and 3 CCT in one, suitable for any settings and applications.
- LED panel light is used in any indoor locations with T-bar ceilings such as offices, schools, hospitals, etc. It is used to replace the big whole fluorescent fixture that usually has 2-4 tube lights inside. Using our LED flat panel light, you won’t need the old, big, and expensive fluorescent fixtures without needing to buy the tube lights separately either you are replacing the old fixtures or using it for the new construction.
Feature
- Wattage and CCT adjustable: Our 1x4 panel lights are 3 wattage and 3 CCT adjustable, meeting the needs of any applications or settings.
- Easy Installation: LED Panel lights are light weight, even the 2x4 LED panel lights are less than 10 lb., making installation easy and hassle free.
- Dimmable: On top of wattage and CCT adjustable features, our panel lights are also 0-10V dimmable.
- 5-Year Warranty: We offer a comprehensive 5-year warranty, ensuring long-lasting performance and peace of mind.
- Energy Efficient: Our LED panel lights use significantly less energy compared to traditional lighting, reducing your electricity bills. We will demonstrate how much energy will be saved using our flat panel lights using the graphs below.
- High Lumen Output: Because of its energy efficiency, the LED flat panel light has high lumen output even set at a small wattage
- Long Lifespan: With a lifespan of 50,000 hours, our LED panel lights last significantly longer than traditional fixtures.
- Eco-Friendly: Unlike fluorescent and compact lights (CFLs), LED lights do not contain mercury, harmful gases or other hazardous materials, making them safer for the environment and easier to dispose. The combined effect of lower energy consumption and longer lifespan means LEDs have a smaller carbon footprint over their lifecycle compared to other lighting types.
Specification
Wattage | 20W/30W/40W adjustable | Voltage: | 120-277V |
---|---|---|---|
Size | 1x4 feet | Certificate | ETL/DLC |
CCT | 4k/5k/6k adjustable | Lifespan | 50,000 hours |
Lumen/W | 125lm/W | CRI | >80 |
Carton size | 48.8 X 13 X 6.1 inch | Carton weight | 32 lb |
Dimmable | Yes | Warranty | 5-year |
Energy consumption comparison
LED Flat Panel light | Wattage | Fluorescent fixture | Wattage |
---|---|---|---|
2x4 Panel | 30W-72W | 2x4 fluorescent | 96W-128W + Ballast wattage |
2x2 Panel | 20W-40W | 2x2 fluorescent | 36W-72W+ ballast wattage |
1x4 Panel | 20W-40W | 1x4 fluorescent | 64W+ ballast wattage |
1x4 Flat Panel LED Lights: Structure, Functionality, and Practical Applications
1x4 flat panel LED lights have become a popular lighting solution in both residential and commercial spaces due to their sleek design, energy efficiency, and even light distribution. These panels utilize advanced LED technology to provide consistent illumination while consuming less power compared to traditional fluorescent fixtures. Their slim profile allows for seamless integration into ceilings, making them ideal for offices, schools, hospitals, and retail environments. This article explores the working principle, structure, applications, and maintenance tips for 1x4 flat panel LED lights, helping you understand why they are a preferred choice for modern lighting solutions.
What Are 1x4 Flat Panel LED Lights?
1x4 flat panel LED lights are a modern lighting solution designed to provide uniform and energy-efficient illumination in various settings. These lights are characterized by their slim, rectangular design, typically measuring 1 foot by 4 feet, making them ideal for both residential and commercial spaces. Unlike traditional lighting fixtures, 1x4 flat panel LED lights utilize light-emitting diodes (LEDs) as their light source, which offers several advantages, including lower energy consumption, longer lifespan, and better light quality.
The design of these lights allows them to blend seamlessly into ceilings, providing a sleek and unobtrusive appearance. They are often used in offices, schools, hospitals, and retail environments where consistent and bright lighting is essential. The flat panel design ensures that light is distributed evenly across the surface, reducing shadows and glare, which can be particularly beneficial in workspaces.
How Do 1x4 Flat Panel LED Lights Work?
1x4 flat panel LED lights operate by using a series of LEDs mounted on a flat surface, which are then diffused through a panel to create uniform light distribution. The process can be broken down into the following steps:
1. Power Supply: The LED panel is connected to a power source, which supplies the necessary electrical energy to the LEDs.
2. Light Emission: When electricity passes through the LEDs, they emit light. The LEDs are strategically placed to ensure even light distribution across the panel.
3. Light Diffusion: The emitted light passes through a diffuser, which is a translucent layer that spreads the light evenly across the surface of the panel. This helps to eliminate hotspots and ensures a consistent light output.
4. Heat Dissipation: LEDs generate some heat, which is managed by heat sinks or other cooling mechanisms integrated into the panel. This helps to maintain the efficiency and longevity of the LEDs.
The result is a bright, even light that is ideal for a variety of applications, from task lighting in offices to ambient lighting in homes.
What Is the Structure and Workflow of 1x4 Flat Panel LED Lights?
The structure of 1x4 flat panel LED lights is designed to maximize efficiency and durability. Here’s a breakdown of the key components:
LED Chips: These are the primary light sources, arranged in a grid pattern to ensure even light distribution.
Diffuser Panel: This is a translucent layer that spreads the light evenly across the surface, reducing glare and hotspots.
Reflector: Some models include a reflector to enhance light output by directing more light through the diffuser.
Frame: The frame holds all the components together and is typically made of lightweight yet durable materials like aluminum.
Driver: The driver regulates the power supply to the LEDs, ensuring they operate at optimal efficiency.
The workflow of these lights involves the conversion of electrical energy into light energy with minimal heat loss. The LEDs are powered by the driver, which ensures a steady current flow, and the light is then diffused through the panel to provide uniform illumination.
What Are the Applications of 1x4 Flat Panel LED Lights?
1x4 flat panel LED lights are versatile and can be used in a wide range of settings. Some common applications include:
Office Spaces: These lights are ideal for office environments where consistent, bright lighting is needed to reduce eye strain and improve productivity.
Educational Institutions: Schools and universities often use these lights in classrooms and lecture halls to create a conducive learning environment.
Healthcare Facilities: Hospitals and clinics benefit from the even light distribution, which is crucial for medical procedures and patient care.
Retail Stores: Retail environments use these lights to highlight products and create an inviting atmosphere for customers.
Residential Spaces: Homeowners can use 1x4 flat panel LED lights in kitchens, living rooms, and other areas where bright, even lighting is desired.
What Are the Work Environment Requirements for 1x4 Flat Panel LED Lights?
To ensure optimal performance and longevity, 1x4 flat panel LED lights should be installed in environments that meet certain requirements:
Temperature: These lights operate best in environments with temperatures ranging from -20°C to 40°C. Extreme temperatures can affect the efficiency and lifespan of the LEDs.
Humidity: The lights should be used in areas with low to moderate humidity levels. High humidity can lead to condensation, which may damage the internal components.
Voltage Stability: A stable power supply is crucial. Fluctuations in voltage can affect the performance of the LEDs and may lead to premature failure.
Ventilation: Proper ventilation is important to dissipate heat effectively. Although LEDs generate less heat than traditional bulbs, adequate airflow helps maintain optimal performance.
How to Maintain and Care for 1x4 Flat Panel LED Lights?
Proper maintenance and care can extend the lifespan of 1x4 flat panel LED lights and ensure they continue to operate efficiently. Here are some steps to follow:
1. Regular Cleaning: Dust and dirt can accumulate on the surface of the panel, reducing light output. Clean the panel regularly with a soft, dry cloth to maintain brightness.
2. Inspect for Damage: Periodically check the lights for any signs of damage, such as cracks in the panel or loose connections. Address any issues promptly to prevent further damage.
3. Check the Driver: The driver is a critical component that regulates power to the LEDs. Ensure it is functioning correctly and replace it if necessary.
4. Avoid Overloading: Do not connect more lights to a single circuit than it can handle. Overloading can lead to voltage drops and reduce the lifespan of the LEDs.
5. Professional Installation: If you’re unsure about the installation process, it’s best to hire a professional. Proper installation ensures the lights operate safely and efficiently.
By following these maintenance tips, you can ensure that your 1x4 flat panel LED lights remain in good condition and provide reliable illumination for years to come.
1x4 flat panel LED lights offer an efficient, long-lasting, and visually appealing lighting solution suitable for various environments. Their advanced LED technology ensures uniform brightness with minimal glare, making them ideal for workspaces and homes. With proper maintenance, such as regular cleaning and ensuring stable voltage supply, these lights can function optimally for years. Whether for an office, a school, or a retail store, 1x4 flat panel LED lights provide a reliable and cost-effective alternative to traditional lighting fixtures.
