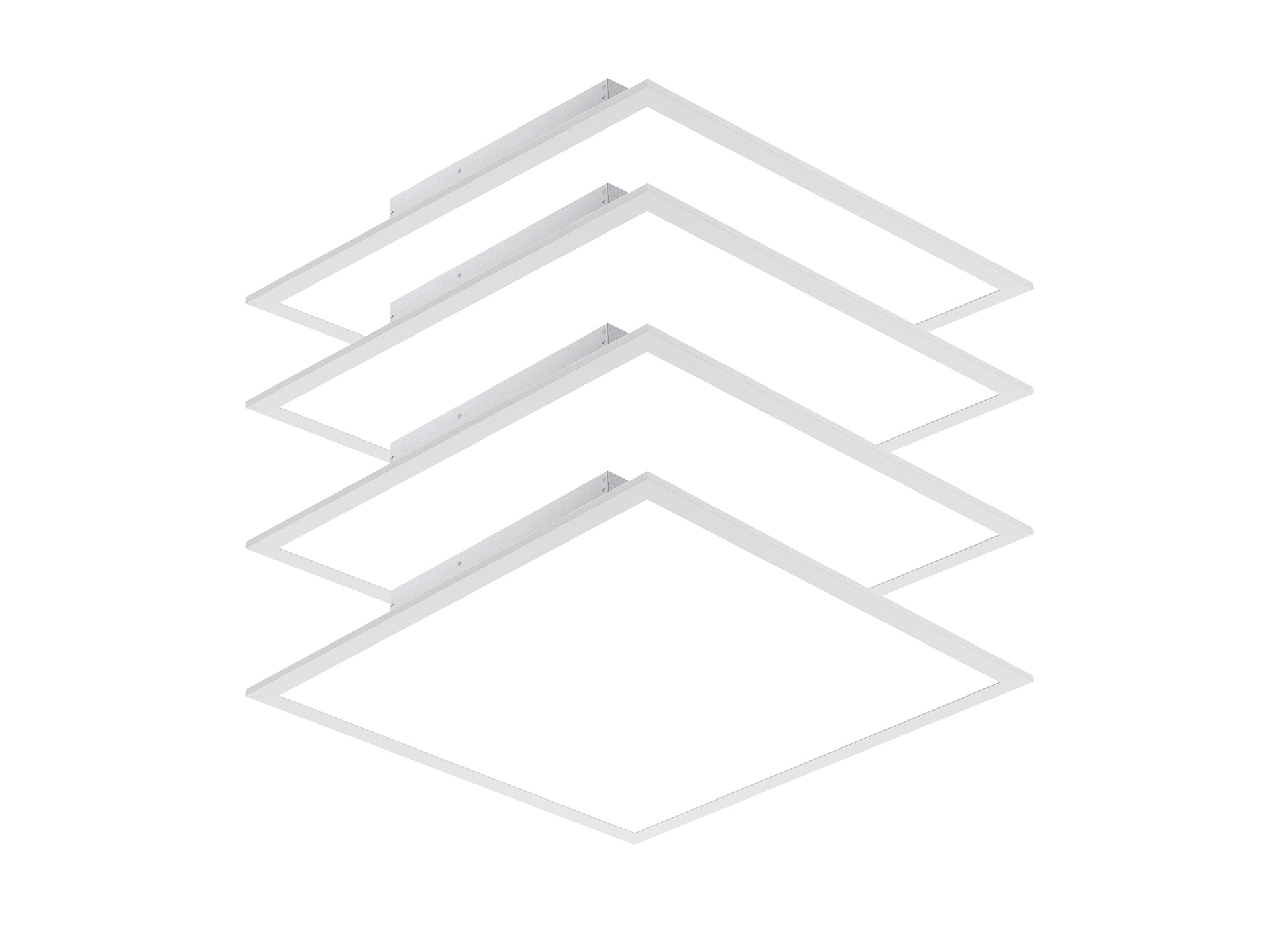

2x2 LED Panel Light (4Pack) 5 Wattage 5 CCT adjustable
Choose options
Description
- Our 2x2 LED Panel light is 5 wattage and 5 CCT in one, suitable for any settings and applications.
- CCT: 3k/3.5k/4k/5k/6.5k adjustable. Wattage: 20W/25W/30W/35W/40W adjustable
- 2x2 led drop ceiling lights
- LED panel light is used in any indoor locations with T-bar ceilings such as offices, schools, hospitals, etc. It is used to replace the big whole fluorescent fixture that usually has 2-4 tube lights inside. Using our LED flat panel light, you won’t need the old, big, and expensive fluorescent fixtures without needing to buy the tube lights separately either you are replacing the old fixtures or using it for the new construction.
Feature
- Wattage and CCT adjustable: Our panel lights are 5 wattage and 5 CCT adjustable, meeting the needs of any applications or settings.
- Easy Installation: LED Panel light is light weight, even the 2x4 LED panel light is less than 10 lb., making installation easy and hassle free.
- Dimmable: On top of wattage and CCT adjustable features, our panel lights are also 0-10V dimmable.
- 5-Year Warranty: We offer a comprehensive 5-year warranty, ensuring long-lasting performance and peace of mind.
- Energy Efficient: Our LED panel lights use significantly less energy compared to traditional lighting, reducing your electricity bills. We will demonstrate how much energy will be saved using our flat panel lights using the graphs below.
- High Lumen Output: Because of its energy efficiency, the LED flat panel light has high lumen output even set at a small wattage
- Long Lifespan: With a lifespan of 50,000 hours, our LED panel lights last significantly longer than traditional fixtures.
Specification
Wattage | 20W/25W/30W/35W/40W adjustable | Voltage: | 120-277V |
---|---|---|---|
Size | 2x2 feet | Certificate | ETL/DLC |
CCT | 3k/3.5k/4k/5k/6.5k adjustable | Lifespan | 50,000 hours |
Lumen/W | 125lm/W | CRI | >80 |
Carton size | 24.8 X 24.8 X 6.1 inch | Carton weight | 18 lb |
Dimmable | Yes | Warranty | 5-year |
Energy consumption comparison
LED Flat Panel light | Wattage | Fluorescent fixture | Wattage |
---|---|---|---|
2x4 Panel | 30W-72W | 2x4 fluorescent | 96W-128W + Ballast wattage |
2x2 Panel | 20W-40W | 2x2 fluorescent | 36W-72W+ ballast wattage |
1x4 Panel | 20W-40W | 1x4 fluorescent | 64W+ ballast wattage |
2x2 LED Flat Panel Light Fixture: The Ultimate Drop Ceiling Lights for Suspended Spaces
When it comes to lighting solutions for suspended ceilings, the 2x2 LED flat panel light fixture stands out as a versatile and energy-efficient option. Designed to fit seamlessly into drop ceilings, these fixtures offer uniform illumination while reducing energy consumption and maintenance costs. Whether you're looking to enhance productivity in an office, create a comfortable environment in a school, or provide bright lighting in a healthcare facility, the 2x2 LED flat panel light fixture is an ideal choice. In this blog, we'll delve into the structure, installation, and benefits of these modern lighting solutions, and why they are perfect for suspended ceilings.
What is a 2x2 LED Flat Panel Light Fixture?
A 2x2 LED flat panel light fixture is a modern lighting solution designed to provide uniform and energy-efficient illumination. As the name suggests, it measures 2 feet by 2 feet, making it a perfect fit for drop ceilings commonly found in offices, schools, and commercial spaces. These fixtures are known for their slim profile, high lumen output, and low energy consumption. Unlike traditional fluorescent lights, 2x2 LED flat panels use light-emitting diodes (LEDs) as their light source, which ensures longer lifespan and reduced maintenance costs. They are ideal for spaces where bright, glare-free lighting is required, such as conference rooms, hospitals, and retail stores.

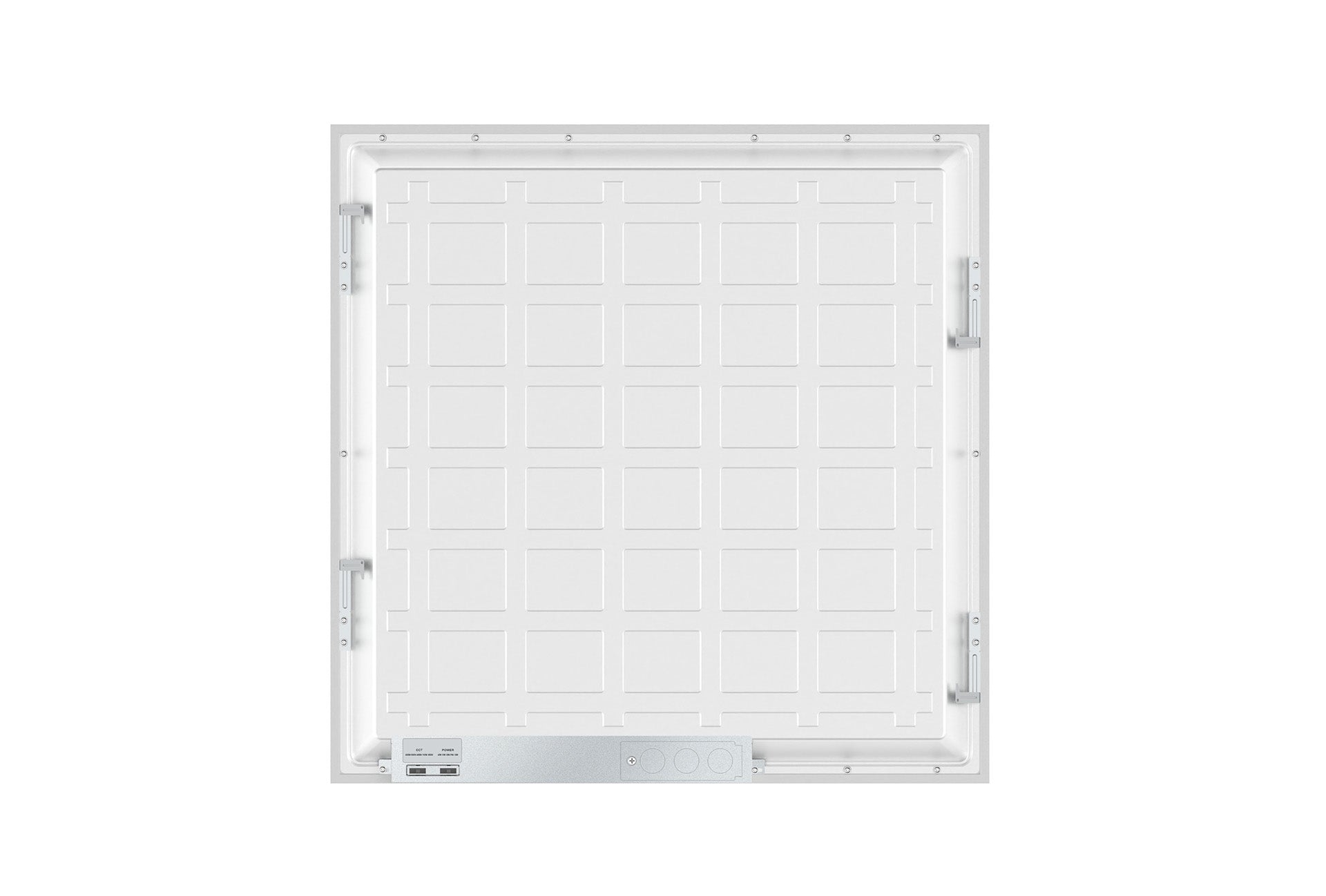

Structure and Components of 2x2 LED Flat Panel Lights
Understanding the structure of a 2x2 LED flat panel light can help you appreciate its functionality and durability. Here are the key components:
1. LED Chips: The core of the fixture, these chips emit light when an electrical current passes through them. They are arranged in a grid to ensure even light distribution.
2. Diffuser Panel: A thin layer placed over the LEDs to soften and spread the light, reducing glare and creating a comfortable lighting environment.
3. Frame: Typically made of aluminum, the frame provides structural support and heat dissipation, ensuring the fixture remains cool during operation.
4. Driver: This component regulates the power supply to the LEDs, ensuring consistent performance and protecting the fixture from voltage fluctuations.
5. Mounting Hardware: Includes brackets or clips for easy installation in drop ceilings or suspended grids.
How Does a 2x2 LED Flat Panel Light Work?
A 2x2 LED flat panel light operates by converting electrical energy into light through the use of LEDs. Here’s a step-by-step breakdown of how it works:
1. Power Supply: The fixture is connected to an electrical source, which provides the necessary voltage to the driver.
2. Current Regulation: The driver adjusts the current to ensure the LEDs receive the correct amount of power.
3. Light Emission: When the current passes through the LED chips, they emit light. The diffuser panel then evenly distributes this light across the surface.
4. Heat Dissipation: The aluminum frame absorbs and dissipates heat generated by the LEDs, preventing overheating and ensuring longevity.
This efficient process makes 2x2 LED flat panels a reliable and energy-saving lighting option.
Applications of 2x2 LED Flat Panel Lights in Different Environments
2x2 LED flat panel lights are versatile and can be used in various settings. Here are some common applications:
Offices: Provides bright, uniform lighting that reduces eye strain and enhances productivity.
Schools and Universities: Ideal for classrooms and libraries due to their flicker-free and glare-free illumination.
Healthcare Facilities: Used in hospitals and clinics for their clean, bright light that mimics natural daylight.
Retail Stores: Enhances product visibility and creates an inviting atmosphere for customers.
Hotels and Restaurants: Adds a modern touch while providing energy-efficient lighting for lobbies and dining areas.
Installation Guide for 2x2 LED Flat Panel Lights in Drop Ceilings
Installing a 2x2 LED flat panel light in a drop ceiling is a straightforward process. Follow these steps for a seamless installation:
1. Turn Off Power: Ensure the power supply to the ceiling is turned off to avoid electrical hazards.
2. Remove Existing Fixture: If replacing an old light, carefully remove it from the ceiling grid.
3. Prepare the LED Panel: Attach the mounting brackets or clips to the sides of the LED panel.
4. Position the Panel: Lift the panel into the ceiling grid and secure it using the brackets or clips.
5. Connect Wiring: Connect the fixture’s wires to the ceiling’s electrical wires, following the manufacturer’s instructions.
6. Test the Light: Turn the power back on and test the fixture to ensure it’s working properly.
Common Issues and Troubleshooting for 2x2 LED Flat Panel Lights
While 2x2 LED flat panel lights are generally reliable, you may encounter some issues. Here’s how to troubleshoot them:
Flickering Lights:
Check the wiring connections to ensure they are secure.
Replace the driver if it’s faulty.
Dim Lighting:
Clean the diffuser panel to remove dust or dirt that may be blocking the light.
Verify that the power supply matches the fixture’s requirements.
Overheating:
Ensure the fixture is properly installed and has adequate ventilation.
Check for any obstructions around the fixture that may trap heat.
No Power:
Inspect the circuit breaker to ensure it hasn’t tripped.
Test the wiring for any breaks or loose connections.
By addressing these issues promptly, you can maintain the performance and longevity of your 2x2 LED flat panel lights.
The 2x2 LED flat panel light fixture is a modern, energy-efficient solution tailored for drop ceilings and suspended spaces. These fixtures measure 2 feet by 2 feet and use LED chips to provide uniform, glare-free lighting. Key components include a diffuser panel for soft light distribution, an aluminum frame for heat dissipation, and mounting hardware for easy installation. They are ideal for various environments, such as offices, schools, healthcare facilities, retail stores, and hospitality spaces, offering bright, flicker-free illumination. Installation is straightforward, with simple steps like attaching brackets and connecting wiring. Common issues, like flickering or dim lighting, can be resolved through troubleshooting. Overall, the 2x2 LED flat panel light fixture combines functionality, efficiency, and style, making it a top choice for suspended ceilings.
