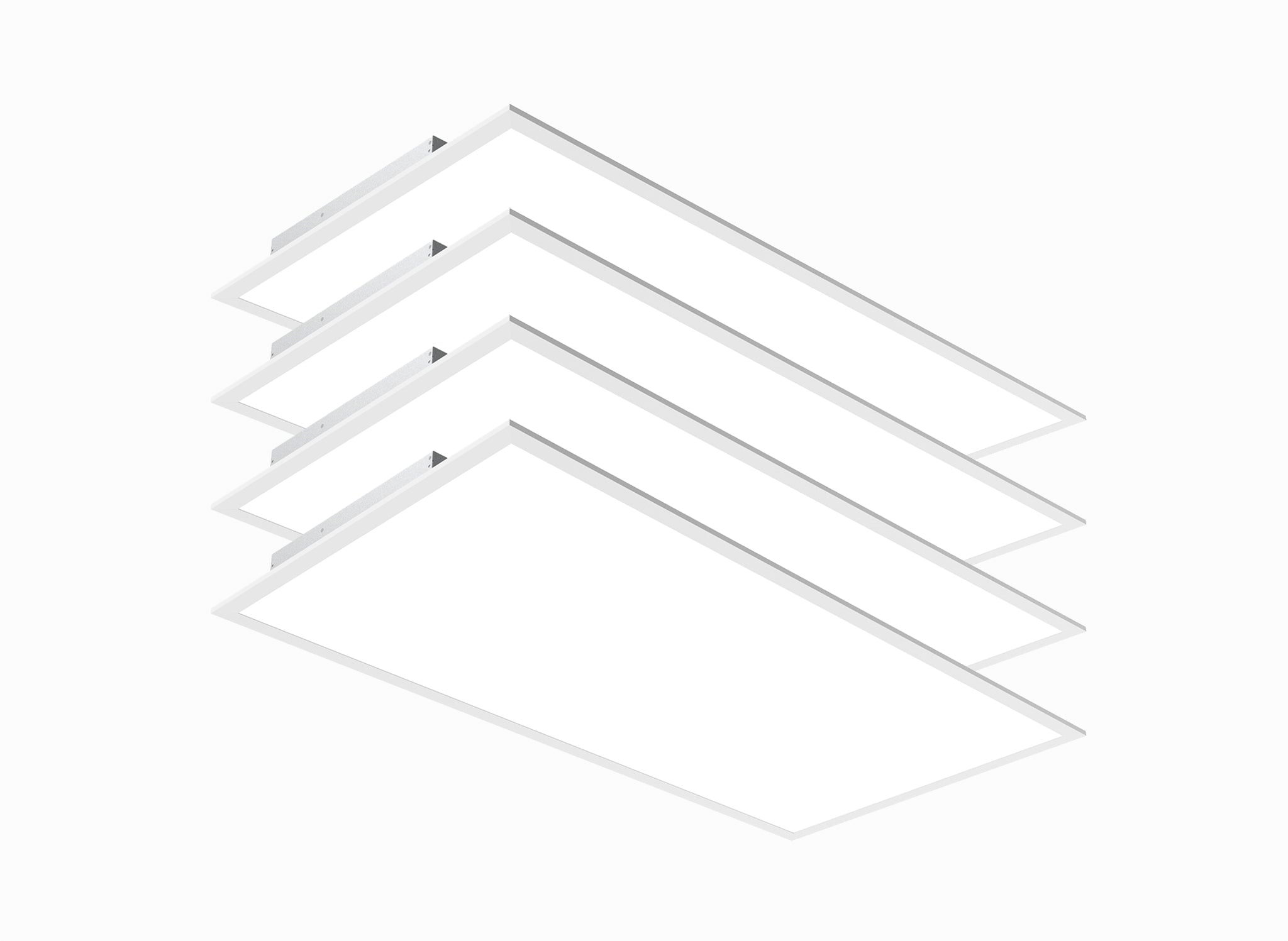

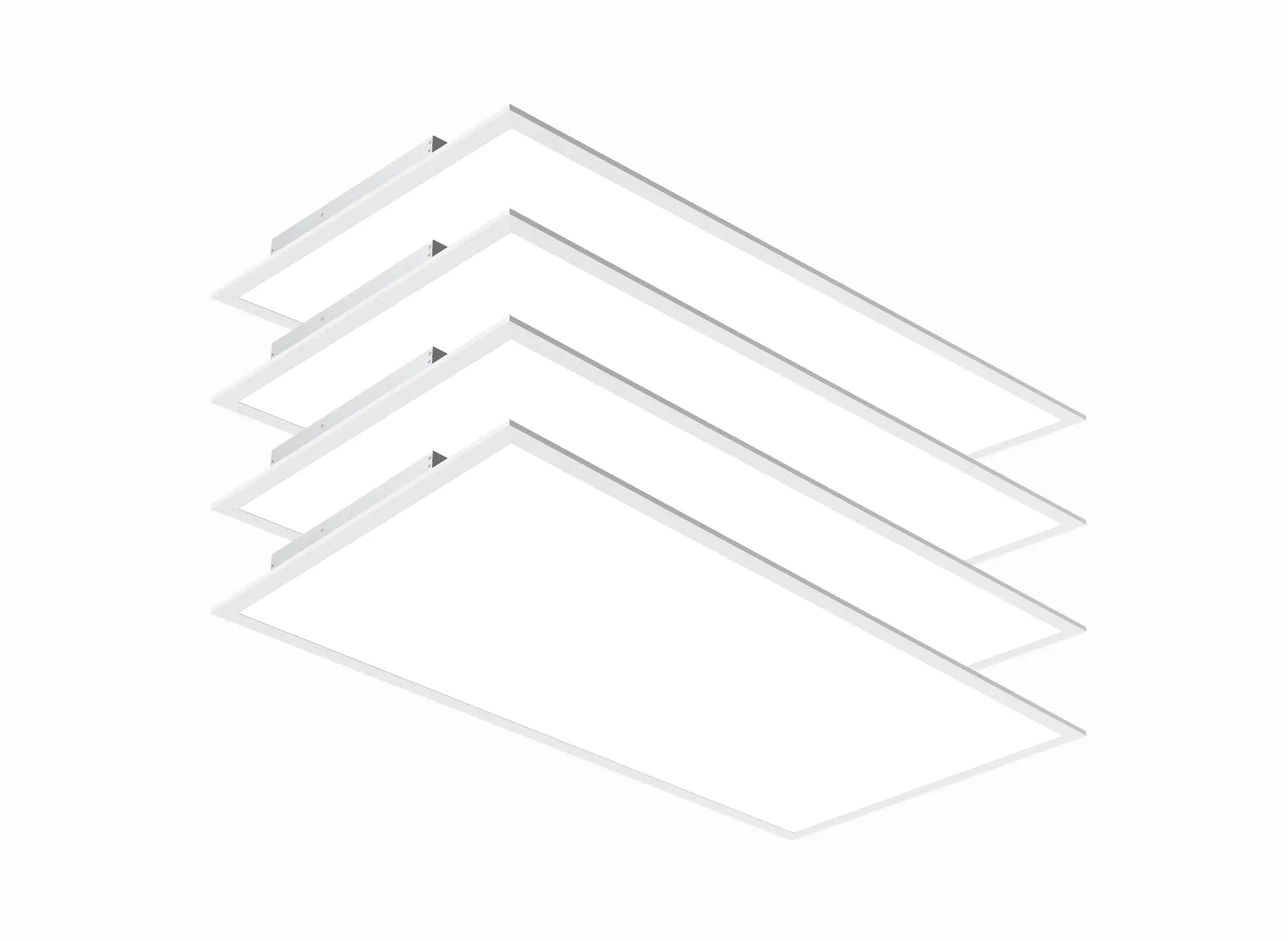

2x4 LED Panel Light (4Pack) 5 Wattage 5 CCT Adjustable
Choose options
Description
- Our 2x4 LED flat Panel lights are 5 wattage and 5 CCT in one, suitable for any settings and applications.
- Wattage: 30W/40W/50W/60W/72W adjustable. CCT: 3k/3.5k/4k/5k/6.5k adjustable
- LED panel light is used in any indoor locations with T-bar ceilings such as offices, schools, hospitals, etc. It is used to replace the big whole fluorescent fixture that usually has 2-4 tube lights inside. Using our LED flat panel light, you won’t need the old, big, and expensive fluorescent fixtures without needing to buy the tube lights separately either you are replacing the old fixtures or using it for the new construction.
Feature
- Wattage and CCT adjustable: Our panel lights are 5 wattage and 5 CCT adjustable, meeting the needs of any applications or settings.
- Easy Installation: LED Panel lights are light weight, even the 2x4 LED panel lights are less than 10 lb., making installation easy and hassle free.
- Dimmable: On top of wattage and CCT adjustable features, our panel lights are also 0-10V dimmable.
- 5-Year Warranty: We offer a comprehensive 5-year warranty, ensuring long-lasting performance and peace of mind.
- Energy Efficient: Our LED panel lights use significantly less energy compared to traditional lighting, reducing your electricity bills. We will demonstrate how much energy will be saved using our flat panel lights using the graphs below.
- High Lumen Output: Because of its energy efficiency, the LED flat panel light has high lumen output even set at a small wattage
- Long Lifespan: With a lifespan of 50,000 hours, our LED panel lights last significantly longer than traditional fixtures.
- Eco-Friendly: Unlike fluorescent and compact lights (CFLs), LED lights do not contain mercury, harmful gases or other hazardous materials, making them safer for the environment and easier to dispose. The combined effect of lower energy consumption and longer lifespan means LEDs have a smaller carbon footprint over their lifecycle compared to other lighting types.
Specification
| Wattage | 30W/40W/50W/60W/72W adjustable | Voltage: | 120-277V |
|---|---|---|---|
| Size | 2x4 feet | Certificate | ETL/DLC |
| CCT | 3k/3.5k/4k/5k/6.5k adjustable | Lifespan | 50,000 hours |
| Lumen/W | 125lm/W | CRI | >80 |
| Carton size | 48.8 X 24.8 X 6.1 inch | Carton weight | 38.6 lb |
| Dimmable | Yes | Warranty | 5-year |
Energy consumption comparison
| LED Flat Panel light | Wattage | Fluorescent fixture | Wattage |
|---|---|---|---|
| 2x4 Panel | 30W-72W | 2x4 fluorescent | 96W-128W + Ballast wattage |
| 2x2 Panel | 20W-40W | 2x2 fluorescent | 36W-72W+ ballast wattage |
| 1x4 Panel | 20W-40W | 1x4 fluorescent | 64W+ ballast wattage |
2x4 LED Flat Panel Light Fixture: The Ultimate Guide to Drop Ceiling Lights and Modern Panels
In today's pursuit of energy efficiency and modern aesthetics, the 2x4 LED flat panel light fixture has emerged as a game-changer. These sleek and versatile lighting solutions are designed to provide uniform illumination while seamlessly blending into various interiors. Whether you're upgrading your office, school, retail store, or even your home, understanding the structure, benefits, and installation of these fixtures can transform your space. Let's dive into the world of 2x4 LED flat panel lights and discover why they are the perfect choice for modern lighting needs.
What is a 2x4 LED Flat Panel Light Fixture?
A 2x4 LED flat panel light fixture is a modern lighting solution designed to provide uniform and energy-efficient illumination. As the name suggests, these fixtures are typically rectangular, measuring 2 feet by 4 feet, making them a perfect fit for drop ceilings commonly found in offices, schools, and commercial spaces. Unlike traditional fluorescent lights, LED flat panels use light-emitting diodes (LEDs) as their light source, offering brighter, more consistent light while consuming significantly less energy. They are known for their slim profile, sleek design, and ability to blend seamlessly into modern interiors.
Structure and Components of 2x4 LED Flat Panel Lights
The 2x4 LED flat panel light is composed of several key components that work together to deliver efficient and reliable lighting:
1. LED Chips: The core of the fixture, these chips emit light when an electrical current passes through them. They are known for their long lifespan and low energy consumption.
2. Diffuser Panel: A translucent layer that spreads the light evenly, reducing glare and creating a soft, uniform illumination.
3. Frame: Typically made of aluminum or steel, the frame provides structural support and helps with heat dissipation.
4. Driver: This component regulates the power supply to the LEDs, ensuring stable performance and protecting the fixture from voltage fluctuations.
5. Mounting Hardware: Includes brackets, clips, or suspension kits for easy installation in drop ceilings or surface mounting.
How Does a 2x4 LED Flat Panel Light Work?
A 2x4 LED flat panel light operates by converting electrical energy into light through the use of LEDs. When the fixture is powered on, the driver supplies the appropriate voltage to the LED chips, causing them to emit light. The light then passes through the diffuser panel, which evenly distributes it across the surface, eliminating hotspots and shadows. Unlike traditional lighting, LED panels produce minimal heat, making them safer and more efficient. Additionally, many models come with dimming capabilities, allowing users to adjust the brightness according to their needs.
Applications of 2x4 LED Flat Panel Light Fixtures
2x4 LED flat panel lights are versatile and suitable for a wide range of applications, including:
Office Spaces: Their uniform light distribution reduces eye strain, making them ideal for workspaces.
Educational Institutions: Schools and universities benefit from their energy efficiency and long lifespan.
Healthcare Facilities: The bright, flicker-free light is perfect for hospitals and clinics.
Retail Stores: These fixtures enhance product visibility and create a welcoming atmosphere.
Residential Areas: They can be used in kitchens, basements, or any area requiring bright, even lighting.
Installation Guide for 2x4 LED Flat Panel Lights
Installing a 2x4 LED flat panel light is a straightforward process. Here’s a step-by-step guide:
1. Turn Off Power: Ensure the power supply to the ceiling is turned off at the circuit breaker.
2. Remove Old Fixture: If replacing an existing light, carefully remove it and disconnect the wiring.
3. Prepare the Mounting Frame: Attach the mounting brackets or suspension kit to the ceiling grid.
4. Connect Wiring: Match the wires from the LED panel to the ceiling wires (black to black, white to white, and green to ground).
5. Secure the Panel: Place the LED panel into the mounting frame and secure it using the provided clips or screws.
6. Test the Light: Turn the power back on and check if the light functions properly.
Usage Precautions for 2x4 LED Flat Panel Lights
To ensure the longevity and safety of your 2x4 LED flat panel lights, follow these precautions:
Avoid Overloading Circuits: Ensure the electrical circuit can handle the load of the LED panel.
Proper Ventilation: Although LEDs produce less heat, ensure the fixture has adequate ventilation to prevent overheating.
Regular Cleaning: Dust the diffuser panel and frame periodically to maintain optimal light output.
Use Compatible Dimmers: If your panel is dimmable, use only compatible dimmer switches to avoid damage.
Professional Installation: If unsure about electrical work, hire a licensed electrician for installation.
By understanding these aspects of 2x4 LED flat panel lights, you can make informed decisions about their use, installation, and maintenance, ensuring they provide reliable and efficient lighting for years to come.
The article explores the comprehensive details of 2x4 LED flat panel light fixtures, highlighting their structure, functionality, and wide range of applications. These fixtures, known for their slim profile and energy efficiency, are composed of key components such as LED chips, diffuser panels, and aluminum frames. They offer uniform, glare-free lighting and are suitable for various settings, including offices, schools, healthcare facilities, and residential areas. The article also provides a step-by-step installation guide and essential usage precautions to ensure longevity and safety. By understanding these aspects, users can enjoy reliable and efficient lighting that enhances both functionality and aesthetics in any space.
