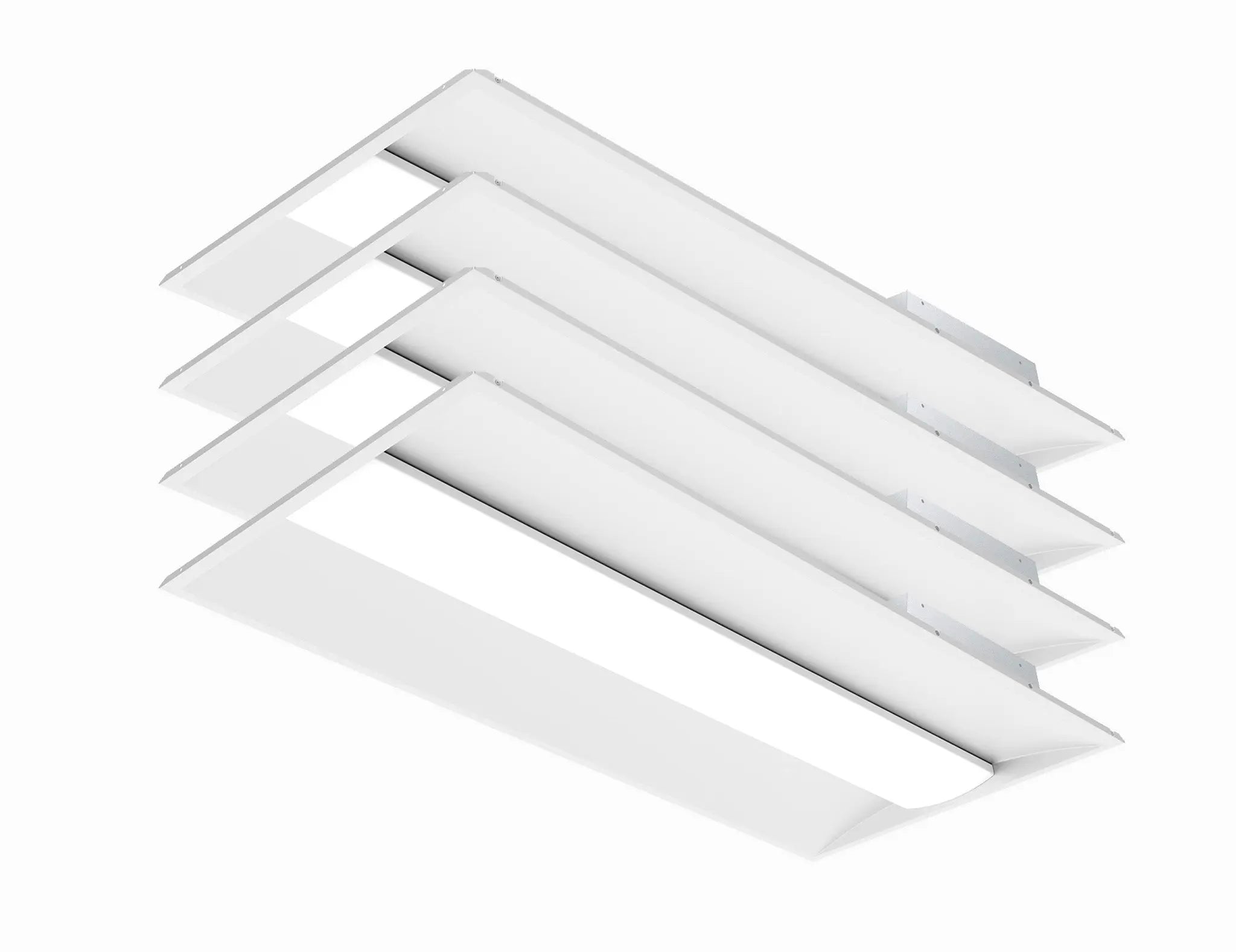

2x4 LED Troffer Light (4Pack) 30-72W Adjustable 3k/3.5k/4k/5k/6.5k
Choose options
Description
- 2x4 LED Troffer light, wattage and CCT adjustable, 120-277V.
- LED Troffer light is used in any indoor locations with T-bar ceilings such as shopping malls, offices, schools, hospitals, etc. It is used to replace the big whole fluorescent fixture that usually has 2-4 tube lights inside. Using our LED Troffer light, you won’t need the old, big, and expensive fluorescent fixtures without needing to buy the tube lights separately either you are replacing the old fixtures or using it for the new construction.
- Available in size 2X4, 2x2, our LED center basket Troffer light (2x4 and 2x2 led light) are wattage and CCT adjustable, suitable for any requirements and applications.
Feature
- Wattage and CCT adjustable: Our Troffer lights are 5 wattage and 5 CCT adjustable, meeting the needs of any applications or settings.
- Easy Installation: LED Troffer lights are light weight, making installation easy and hassle free.
- Dimmable: On top of wattage and CCT adjustable features, our Troffer lights are also 0-10V dimmable.
- 5-Year Warranty: We offer a comprehensive 5-year warranty, ensuring long-lasting performance and peace of mind.
- Energy Efficient: Our LED Troffer lights use significantly less energy compared to traditional lighting, reducing your electricity bills. We will demonstrate how much energy will be saved using our Troffer light using the graphs below.
- High Lumen Output: Because of its energy efficiency, the LED Troffer has high lumen output even set at a small wattage
- Long Lifespan: With a lifespan of 50,000 hours, our LED Troffer lights last significantly longer than traditional fixtures.
- Eco-Friendly: Eco-Friendly: Unlike fluorescent and compact lights (CFLs), LED lights do not contain mercury, harmful gases or other hazardous materials, making them safer for the environment and easier to dispose. The combined effect of lower energy consumption and longer lifespan means LEDs have a smaller carbon footprint over their lifecycle compared to other lighting types.
Specification
| Wattage | 30W/40W/50W/60W/72W adjustable | Voltage: | 120-277V |
|---|---|---|---|
| Cover | Lens | Certificate | ETL&DLC |
| CCT | 3000k/3500k/4000k/5000k/6500k | Lifespan | 50,000 hours |
| Lumen/W | 125lm/W | CRI | >80 |
| Carton size | 48.8X 24.8X 9.8 inches | Dimmable | Yes |
| Carton weight | 43.7 lb | Warranty | 5-year |
LED Energy consumption comparison
Energy consumption comparison
| LED Troffer light | Wattage | Fluorescent fixture | Wattage |
|---|---|---|---|
| 2x4 LED Troffer | 30W-72W | 2x4 fluorescent | 96W-128W + Ballast wattage |
| 2x2 LED Troffer | 20W-40W | 2x2 fluorescent | 36W-72W+ ballast wattage |
2x4 LED Troffer Lights: Drop-In, Lay-In Fixtures for Modern Illumination
In today's fast-paced world, efficient and reliable lighting solutions are essential for both commercial and residential spaces. The 2x4 LED Troffer Light has emerged as a game-changer, offering a perfect blend of energy efficiency, versatility, and superior light quality. Whether you're looking to retrofit an existing space or install new lighting, understanding the ins and outs of 2x4 LED Troffer Lights is crucial. From their key components and working principles to installation and maintenance tips, this blog will provide a comprehensive overview of why these lights are the future of modern illumination.
What is a 2x4 LED Troffer Light?
A 2x4 LED Troffer Light is a modern lighting solution designed to fit into standard 2x4-foot drop ceilings, commonly found in offices, schools, and commercial spaces. Unlike traditional fluorescent troffers, LED troffers are energy-efficient, long-lasting, and provide superior light quality. They are typically slim, lightweight, and come in various designs, including lay-in and drop-in models, making them versatile for different ceiling types. These fixtures are ideal for spaces that require bright, uniform illumination while reducing energy consumption and maintenance costs.
What are the Key Components of a 2x4 LED Troffer Light?
The structure of a 2x4 LED Troffer Light consists of several essential components that work together to deliver efficient and reliable lighting:
1. LED Chips: The core light source, known for its energy efficiency and long lifespan.
2. Driver: Converts AC power to DC, ensuring stable operation and protecting the LEDs from voltage fluctuations.
3. Housing: The frame, usually made of aluminum or steel, provides durability and heat dissipation.
4. Diffuser: A cover that evenly distributes light and reduces glare, often made of acrylic or polycarbonate.
5. Mounting Hardware: Includes brackets, clips, or suspension systems for easy installation in drop or lay-in ceilings.
These components are designed to work seamlessly, ensuring optimal performance and longevity.
How Do 2x4 LED Troffer Lights Work?
The working principle of 2x4 LED Troffer Lights is based on the conversion of electrical energy into light through Light Emitting Diodes (LEDs). When electricity passes through the LED chips, they emit light with minimal heat generation. The driver regulates the power supply, ensuring consistent brightness and preventing flickering. The diffuser then evenly spreads the light across the area, eliminating dark spots and creating a comfortable visual environment. This efficient process makes LED troffers a superior alternative to traditional fluorescent lighting.
Where Can 2x4 LED Troffer Lights Be Used?
2x4 LED Troffer Lights are highly versatile and suitable for a wide range of applications, including:
Offices: Provides bright, flicker-free lighting for improved productivity and reduced eye strain.
Schools and Universities: Ensures well-lit classrooms and lecture halls for better learning environments.
Hospitals and Clinics: Offers clean, uniform lighting for patient care and medical procedures.
Retail Stores: Enhances product visibility and creates an inviting atmosphere for customers.
Commercial Buildings: Ideal for lobbies, hallways, and conference rooms due to their sleek design and energy efficiency.
Their adaptability makes them a popular choice for both new installations and retrofitting existing spaces.
How to Install a 2x4 LED Troffer Light: Step-by-Step Guide
Installing a 2x4 LED Troffer Light is straightforward, especially if you follow these steps:
1. Turn Off Power: Ensure the power supply to the ceiling is turned off at the circuit breaker.
2. Remove Old Fixture: If replacing an existing troffer, carefully remove it and disconnect the wiring.
3. Prepare the New Troffer: Unbox the LED troffer and check all components for damage.
4. Connect Wires: Match the wires from the troffer to the ceiling wires (black to black, white to white, and green to ground).
5. Secure the Fixture: Use the provided clips or brackets to attach the troffer to the ceiling grid.
6. Test the Light: Turn the power back on and ensure the fixture is functioning correctly.
Always refer to the manufacturer’s instructions for specific details and safety precautions.
How to Maintain and Care for Your 2x4 LED Troffer Lights
Proper maintenance ensures the longevity and performance of your 2x4 LED Troffer Lights. Here are some tips:
Regular Cleaning: Dust the fixture and diffuser periodically to maintain optimal light output.
Inspect Wiring: Check for loose connections or damaged wires to prevent electrical issues.
Avoid Overloading: Ensure the fixture is not exposed to excessive moisture or heat.
Replace Components: If the diffuser becomes discolored or damaged, replace it to maintain light quality.
By following these simple steps, you can extend the life of your LED troffers and keep them functioning at their best.
The 2x4 LED Troffer Light is a versatile and energy-efficient lighting solution designed for standard 2x4-foot drop ceilings. Unlike traditional fluorescent troffers, these lights offer long-lasting performance, reduced energy consumption, and superior light quality. Key components include LED chips, a driver, durable housing, a diffuser for even light distribution, and mounting hardware for easy installation. Their working principle involves converting electrical energy into light with minimal heat generation, ensuring consistent brightness and a comfortable visual environment. Suitable for offices, schools, hospitals, retail stores, and commercial buildings, 2x4 LED Troffer Lights are ideal for both new installations and retrofitting. Installation is straightforward, while regular cleaning and inspection help maintain their longevity. By choosing 2x4 LED Troffer Lights, you can enhance productivity, reduce maintenance costs, and create a well-lit environment for any space.
