LED Tube(25 Pack) 2ft 2pin 10W Type B 6500K clear cover
Choose options
Description

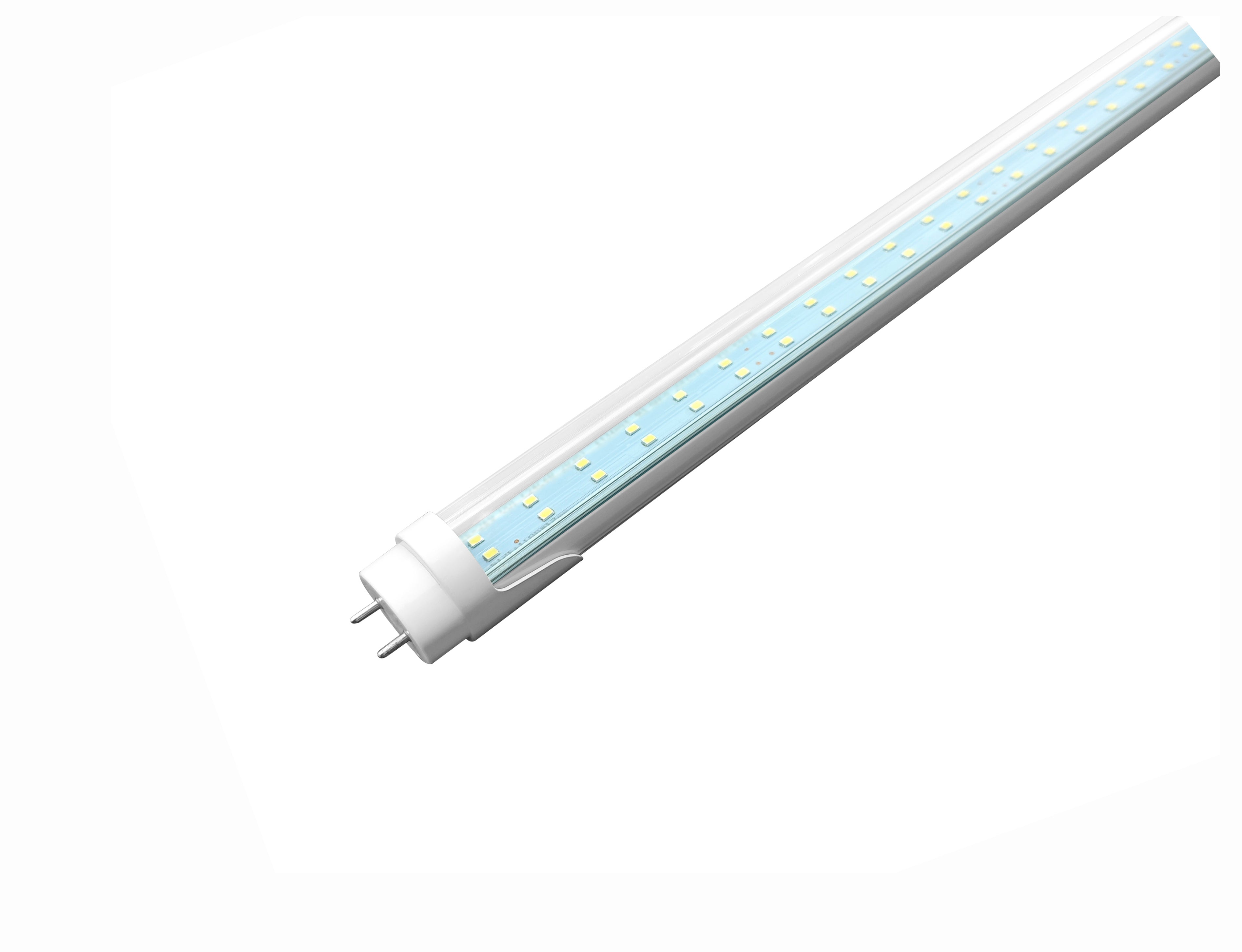

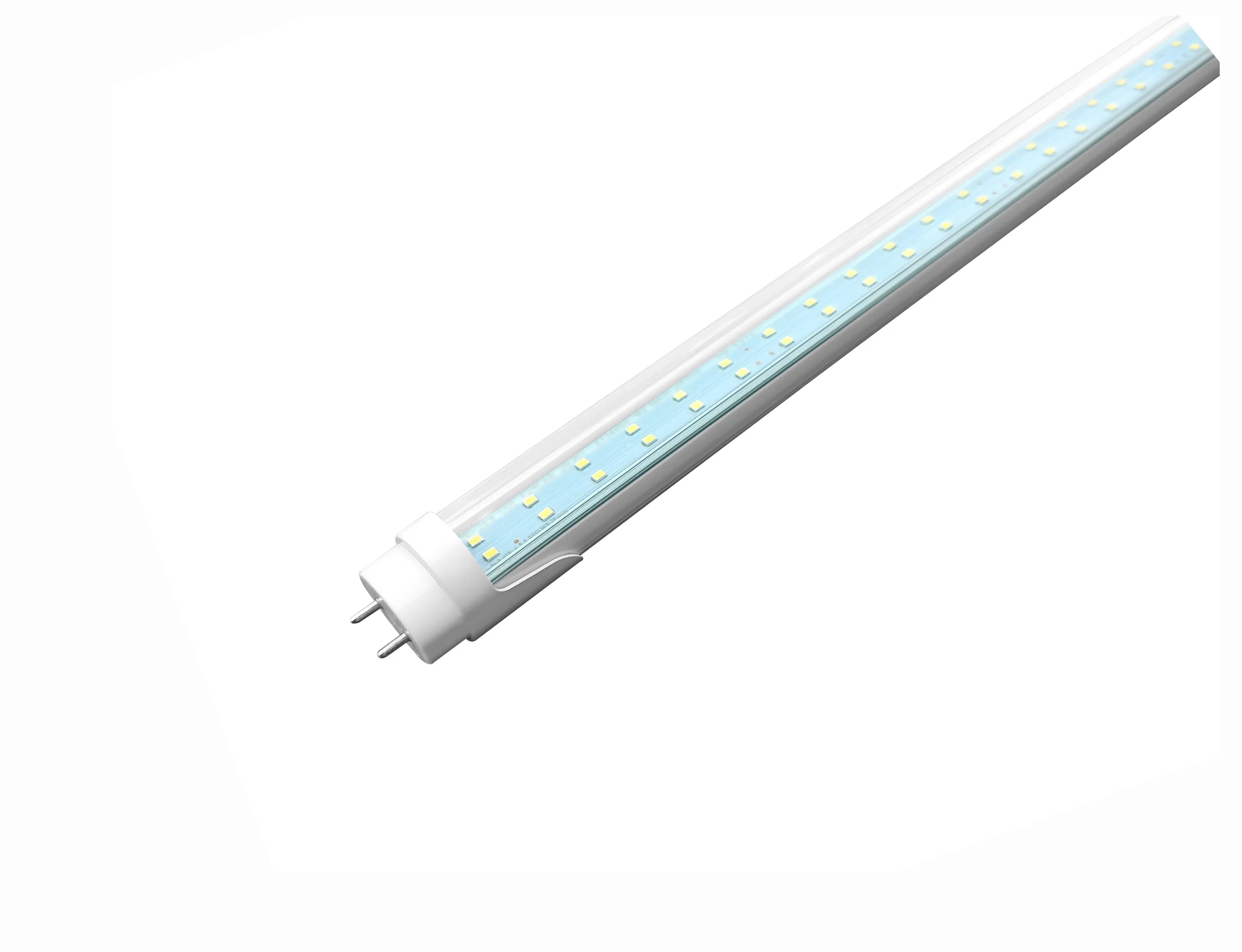

- 2ft 2pin LED tube light, type B, 6500k, 120-277V.
- Designed for efficiency and durability, our 2ft 2pin T8 LED tube lights are Type B (ballast bypass), which means you don’t need a ballast to install the tube lights. Using ballasts increases the energy consumption and it increases the purchase cost and replacement cost.
- The 2ft 2 pin LED tube lights are used for replacing the traditional fluorescent tube lights inside the 2x2 Fluorescent Troffer fixtures that sit on T-bar ceiling in locations like offices, school, etc. T8 LED tube lights are much brighter, more energy efficient and have a much longer lifespan.
Features
- Energy saving: Uses only 10 watts of energy, at the same time, it provides a much brighter lumen output than traditional fluorescent tube lights.
- Long Lifespan: With a lifespan of 50,000 hours, our LED tube light reduces the frequency of replacements, saving time and replacement cost.
- Easy Installation: There are no additional ballasts or wiring modifications needed for the new project. If there are existing ballasts, you’ll need to disconnect them.
- Eco-Friendly: Unlike fluorescent and compact lights (CFLs), LED lights do not contain mercury, harmful gases or other hazardous materials, making them safer for the environment and easier to dispose. The combined effect of lower energy consumption and longer lifespan means LEDs have a smaller carbon footprint over their lifecycle compared to other lighting types.
- Improve safety for installation: Unlike traditional glass tube lights that break into pieces and could potentially hurt people and hard to clean if dropped, our T8 tube lights are made of Metal + PC, no need to worry even when they were dropped.
Specification
| Wattage: | 10W | Voltage: | 120-277V |
|---|---|---|---|
| Size | 2 feet | Certificate | ETL |
| CCT | 6500k | Lifespan | 50,000 hours |
| Lumen/W | 130lm/W | CRI | >80 |
| Carton size | 25.2X 7.3X 7.3 inch | Carton weight | 10 lb |
| Dimmable | No | Warranty | 3-year |
Energy consumption comparison
| T8 Tube Light Length | LED Tube light (Wattage) | Fluorescent tube light (Wattage) |
|---|---|---|
| 2 ft | 10W | 20W |
| 4 ft | 22W-24W | 40W |
| 8 ft | 36W-60W | 70W-96W |
2ft LED Tube Light Fixture: The Future of Energy-Efficient Lighting
In today's world, where energy efficiency and environmental sustainability are paramount, the 2ft LED tube light fixture emerges as a game-changer. This modern lighting solution not only replaces traditional fluorescent tubes but also enhances the quality and versatility of illumination. Whether in homes, offices, or industrial settings, the 2ft LED tube light fixture offers a brighter, greener, and more durable alternative. Discover how this compact yet powerful lighting system can transform your space while reducing your carbon footprint and energy costs.
What is a 2ft LED Tube Light Fixture?
A 2ft LED tube light fixture is a modern lighting solution designed to replace traditional fluorescent tube lights. It consists of an LED tube that fits into a compatible fixture, providing energy-efficient and long-lasting illumination. These fixtures are commonly used in residential, commercial, and industrial settings due to their compact size and versatility. Unlike older fluorescent tubes, LED tube lights do not contain harmful gases like mercury, making them a safer and more environmentally friendly option. They are available in various color temperatures, allowing users to customize the lighting to suit different environments.
Structure and Components of a 2ft LED Tube Light Fixture
A 2ft LED tube light fixture is made up of several key components that work together to deliver efficient lighting. Here’s a breakdown of its structure:
LED Chips: The core of the tube, these chips emit light when electricity passes through them. They are highly energy-efficient and have a long lifespan.
Diffuser: A cover that spreads the light evenly, reducing glare and providing a uniform illumination.
Heat Sink: Helps dissipate heat generated by the LED chips, ensuring the fixture operates at optimal temperatures.
Driver: Converts AC power to DC power, which is required for the LEDs to function. It also regulates the voltage and current to ensure stable performance.
End Caps: These are the connectors at both ends of the tube, allowing it to be securely installed in the fixture.
Fixture Housing: The frame that holds the tube in place, often made of durable materials like aluminum or plastic.
How Does a 2ft LED Tube Light Fixture Work?
A 2ft LED tube light fixture operates by converting electrical energy into light through a process called electroluminescence. Here’s a step-by-step explanation of how it works:
1. Power Supply: The fixture is connected to an electrical power source, typically through a ballast or direct wiring.
2. Current Regulation: The driver inside the fixture regulates the incoming AC power, converting it to the appropriate DC voltage required by the LED chips.
3. Light Emission: When the current reaches the LED chips, they emit photons, producing visible light.
4. Heat Management: The heat sink absorbs and dissipates excess heat, preventing overheating and ensuring the LEDs operate efficiently.
5. Light Diffusion: The diffuser spreads the light evenly, creating a consistent and comfortable illumination.
This process is highly efficient, consuming significantly less energy than traditional fluorescent tubes while providing brighter and more consistent light.
Applications of 2ft LED Tube Light Fixtures
2ft LED tube light fixtures are versatile and can be used in a wide range of settings. Here are some common applications:
Residential Spaces: Ideal for kitchens, bathrooms, and garages where compact and bright lighting is needed.
Offices: Provides efficient and flicker-free lighting, reducing eye strain and improving productivity.
Retail Stores: Enhances product visibility with bright and customizable lighting options.
Hospitals and Clinics: Offers clean and consistent lighting, crucial for medical environments.
Industrial Facilities: Withstands harsh conditions and provides reliable illumination for warehouses and factories.
Educational Institutions: Ensures well-lit classrooms and hallways, creating a conducive learning environment.
Environmental Requirements for Using 2ft LED Tube Light Fixtures
To ensure optimal performance and longevity of 2ft LED tube light fixtures, certain environmental conditions should be met:
Temperature: LED tubes perform best in temperatures between -20°C and 40°C. Extreme heat or cold can affect their efficiency and lifespan.
Humidity: Avoid installing fixtures in areas with high humidity or direct exposure to water, unless they are specifically rated for damp or wet locations.
Ventilation: Ensure proper airflow around the fixture to prevent overheating, especially in enclosed spaces.
Voltage Stability: Use a stable power supply to avoid voltage fluctuations, which can damage the LED driver and reduce the fixture’s lifespan.
Clean Environment: Keep the fixture free from dust and debris, as accumulation can block heat dissipation and reduce light output.
Installation Guide for 2ft LED Tube Light Fixtures
Installing a 2ft LED tube light fixture is a straightforward process. Follow these steps for a safe and successful installation:
Tools and Materials Needed:
2ft LED tube light fixture
Wire stripper
Electrical tape
Ladder (if needed)
Step-by-Step Installation:
1. Turn Off Power: Ensure the power supply to the existing fixture is turned off at the circuit breaker.
2. Remove Old Fixture: If replacing an old fluorescent tube, carefully remove it and disconnect the wiring.
3. Prepare the Wires: Strip the ends of the wires to expose the conductors, if necessary.
4. Connect the Wires: Match the wires from the LED fixture to the corresponding wires in the ceiling or wall (typically black to black, white to white, and green to ground). Secure them with wire nuts and wrap with electrical tape.
5. Mount the Fixture: Attach the fixture to the ceiling or wall using the provided screws and brackets.
6. Insert the LED Tube: Gently insert the 2ft LED tube into the fixture, ensuring it is securely seated.
7. Restore Power: Turn the power back on and test the fixture to ensure it is working properly.
By following these steps, you can enjoy the benefits of energy-efficient and long-lasting LED lighting in your space.
The 2ft LED tube light fixture is a highly efficient and eco-friendly alternative to traditional fluorescent lighting. It consists of key components such as LED chips, a diffuser, heat sink, driver, and end caps, all working together to provide bright, uniform illumination. Unlike fluorescent tubes, LED lights are mercury-free and available in various color temperatures to suit different environments. They are ideal for residential, commercial, and industrial use, offering applications in kitchens, offices, retail stores, hospitals, and more. To ensure optimal performance, these fixtures should be installed in stable environments with proper ventilation and temperature control. The installation process is straightforward, requiring basic tools and careful wiring. By embracing 2ft LED tube light fixtures, users can enjoy energy savings, reduced maintenance, and a more sustainable lighting solution.
