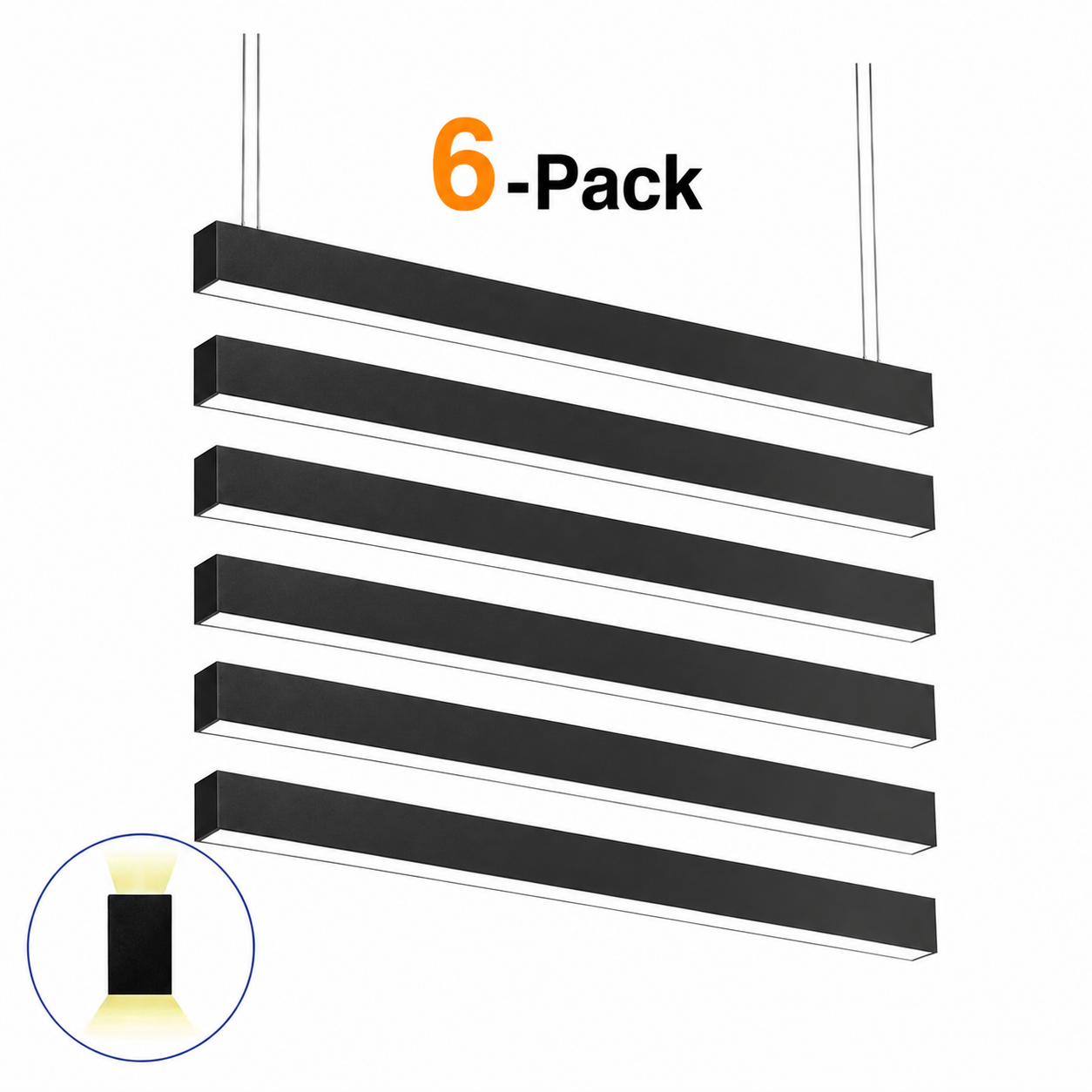

4ft LED Up and down Linear light (black-6-Pack)

Illuminate your space with the modern and versatile Up and Down LED Linear Light, an advanced architectural lighting solution designed for commercial, retail, office, and residential applications. Featuring a sleek 2.2" wide by 3.2" tall profile, this suspended linear fixture delivers both direct and indirect illumination, creating comfortable, balanced lighting with a clean contemporary appearance.

LED up and down linear light spec sheet

Product Description

Our LED Up and Down Linear Hanging Light combines premium performance, flexible installation, and customizable lighting options in one elegant fixture. Available in 2ft, 4ft, and 8ft lengths, this architectural linear light is ideal for offices, conference rooms, schools, retail stores, hallways, hospitality spaces, and modern interiors.

Designed with selectable direct-indirect light distribution, this fixture allows you to customize the uplight and downlight ratio to create the perfect ambiance while improving visual comfort. The slim linear body integrates seamlessly into modern architectural designs while delivering high efficacy illumination over 130 LM/W.

With field-adjustable wattage and color temperature, contractors and facility managers can easily adapt the fixture to different project requirements, reducing SKU complexity and installation costs.

Key Features

• Up & Down Lighting Design: Provides both direct and indirect illumination for improved visual comfort and modern architectural aesthetics

• Adjustable Direct-Indirect Distribution: Selectable uplight/downlight ratios including 100% downlight, 90/10, 80/20, and 70/30 configurations

• CCT Adjustable: Easily select between 3500K, 4000K, 5000K, and 6500K color temperatures

• Wattage Adjustable:

• 2FT: 15W / 20W / 25W

• 4FT: 40W / 45W / 50W

• 8FT: 60W / 70W / 80W

• High Efficiency Performance: Delivers over 130 lumens per watt for maximum energy savings and bright illumination

• Seamless Continuous Run Capability: Tool-free press-lock connections allow fast and clean continuous row installations

• Multiple Connector Options: I, L, T, X, Y, and 120° connectors available for custom lighting layouts and creative designs

• Multiple Mounting Methods: Supports suspended, surface, wall, and recessed mounting applications

• Modern Slim Profile: Compact 2.2" width and 3.2" height provide a sleek, minimalist architectural appearance

• 0-10V Dimmable: Smooth dimming compatibility for enhanced lighting control and energy management

• Sensor & Emergency Backup Ready: Compatible with sensor solutions and emergency battery options on 4ft and 8ft models

• DLC Dual Listed: Eligible for utility rebates and energy efficiency incentive programs

• Easy Installation: Screw-free end cover and tool-free connection system simplify installation and maintenance

• Available Finishes: Standard white and black finishes, with custom colors available upon request

• Durable & Reliable: Backed by a 5-year warranty for long-lasting commercial performance

Applications

Perfect for offices, commercial buildings, retail stores, schools, conference rooms, hospitals, hospitality spaces, hallways, showrooms, and modern residential interiors.

Available Sizes

• 2FT LED Linear Hanging Light
• 4FT LED Linear Hanging Light
• 8FT LED Linear Hanging Light

Specification

Elevate your lighting experience with JQZ up and down LED Linear Light. Its combination of adjustable features, high performance, and elegant design makes it the perfect choice for those who demand both style and functionality in their lighting solutions.
