Bad spacing makes even premium fixtures look cheap. A strong led drop ceiling lights spacing layout starts with the ceiling grid, mounting height, beam spread, and the work happening below. In a dropped ceiling, which Wikipedia defines as a secondary ceiling hung below the structural ceiling, fixture placement needs to match both the room plan and the grid itself. If you need commercial-grade options to match a clean layout, Jqzlighting is worth considering early so your spacing plan aligns with available panel sizes, output ranges, and installation constraints.
How to calculate spacing for LED lights in a drop ceiling
The simplest rule is to space fixtures based on mounting height, then adjust for beam spread and task density. Top-ranking guides consistently use a height-based method, and one 2026 competitor notes that an 8-foot ceiling often lands near 4-foot spacing for general lighting. Another spacing guide highlights spacing criteria, where a fixture's maximum spacing can be estimated by multiplying mounting height by the fixture's spacing factor.
For drop ceilings, start with the distance from the fixture plane to the work surface, not just floor-to-ceiling height. In offices and retail, the work plane is often desks, counters, or shelving, so the effective mounting height is lower than the full room height.
Key takeaway: Use the ceiling grid as your installation map, but use mounting height as your lighting map.
A quick spacing table for common ceiling heights
| Ceiling height | Typical starting spacing for general lighting | Best use case |
|---|---|---|
| 8 ft | about 4 ft on center | offices, corridors, small retail |
| 9 ft | about 4.5 to 5 ft on center | classrooms, clinics, reception areas |
| 10 ft | about 5 to 6 ft on center | open offices, showrooms |
| 12 ft | about 6 to 8 ft on center | large retail, light industrial |
These are starting points, not code. Tighter spacing gives smoother uniformity, while wider spacing can work if fixtures have broader distribution.
A simple 3-step method
- Measure room length and width.
- Subtract your wall offset, usually a smaller distance than full fixture spacing.
- Divide the remaining area into equal rows and columns that fit the ceiling grid.
A practical layout should also respect the common drop ceiling module, especially 2x2 and 2x4 grids. That usually makes panel LEDs easier to align than round downlights.
Why wall offsets matter
Wall offsets keep perimeter zones from looking dim. A common planning approach is to place the first row at about half the distance used between fixtures, then keep the center-to-center spacing consistent across the room.

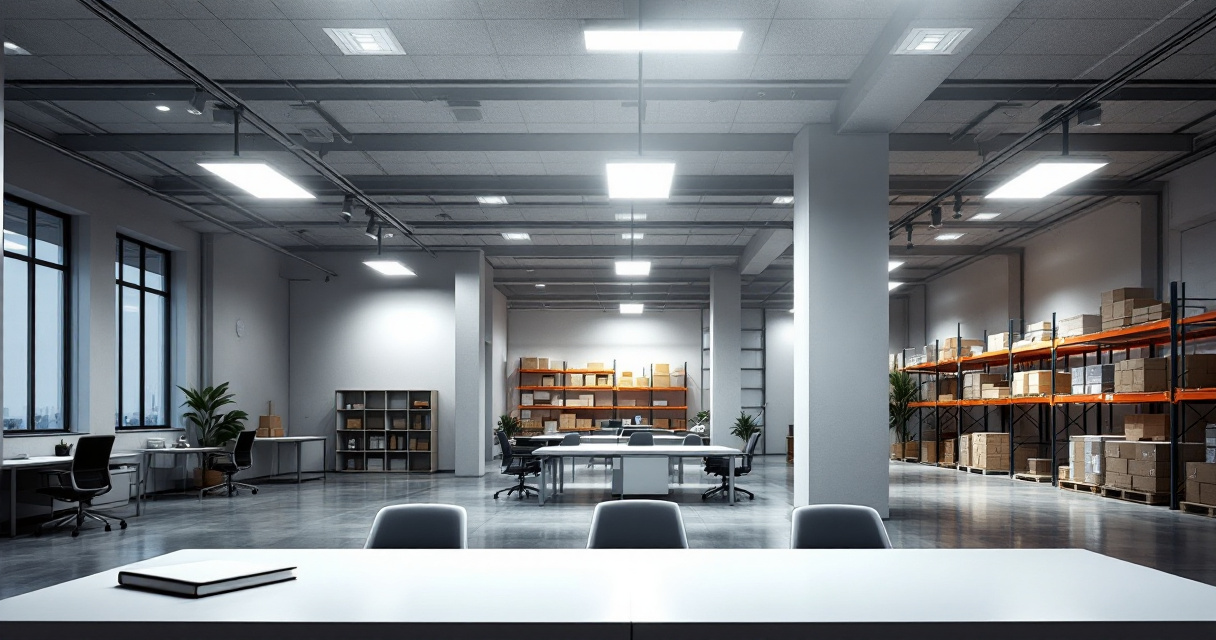

What changes spacing in offices, retail stores, and warehouses
Room use changes spacing because light uniformity matters differently in each space. A corridor can tolerate a more linear pattern, while a cashier area, checkout zone, or workstation benefits from tighter spacing and fewer shadows.
Commercial owners should also think beyond brightness alone. A 2021 review of building disease control in Indoor Air examined ventilation and other building factors that affect indoor environments, which matters because suspended ceilings often carry both lighting and HVAC. Your layout should avoid fighting diffusers, returns, sprinklers, and sensors.
Where spacing usually needs adjustment
- Offices: tighten rows over desks and meeting tables
- Retail: highlight aisles, product walls, and checkout areas separately
- Warehouses: use wider spacing in open circulation zones, tighter spacing over picking and packing stations
- Healthcare or clean spaces: coordinate carefully with vents and service access points
Broader building design also matters. A 2021 review of daylighting technologies in the International Journal of Photoenergy looked at how daylight can reduce electric lighting demand. In practical terms, perimeter spaces with windows may need a different fixture count or zoning than deep interior rooms.
Key takeaway: One room rarely needs one identical spacing rule from wall to wall.
Signs your plan should be tighter, not wider
- Tall shelving blocks light
- Dark finishes absorb more illumination
- Tasks involve reading labels, paperwork, or detailed assembly
- You want lower glare by using more fixtures at lower output instead of fewer fixtures at high output
How fixture type affects layout
Panel lights, troffers, and recessed downlights spread light differently. A 2x2 LED panel in a grid often gives more even ambient coverage, while small downlights create more noticeable bright and dark zones unless you tighten spacing.
Best layout patterns for drop ceiling grids
The best pattern is the one that matches both the grid and the room's task zones. In suspended ceilings, symmetry matters because even small misalignment is obvious when fixtures sit inside a visible T-bar system.
Common layout patterns and when to use them
| Pattern | Best for | Main advantage | Main limitation |
|---|---|---|---|
| Straight rows | offices, classrooms, retail aisles | easy planning and clean appearance | can feel rigid in mixed-use rooms |
| Centered grid | lobbies, boardrooms, sales floors | balanced look from every angle | may not fit perimeter tasks perfectly |
| Perimeter plus core | stores, restaurants, reception | stronger wall and display lighting | needs separate switching plan |
| Task-zone layout | warehouses, workshops, clinics | light goes where work happens | less visually symmetrical |
A centered grid usually works best when the room is rectangular and furniture is flexible. Perimeter-plus-core works better when walls carry displays, signs, or shelving.
A reliable planning sequence
- Mark all fixed obstacles, vents, sprinklers, access panels, and structural conflicts.
- Choose the dominant pattern, usually rows or a centered grid.
- Set the first row from the wall.
- Fill the core with equal spacing.
- Review sightlines from entrances and major aisles.
One more factor is emerging building tech. A 2022 paper in IEEE Sensors Journal explored lighting-related sensing and communication applications. You may not need that today, but it supports a smart design habit for 2026: leave room for sensors, controls, and future retrofits when laying out fixtures.
When symmetry should lose to function
Function should win when shelf rows, machinery, or service counters define the space. Perfectly centered lights can still produce poor task visibility if the layout ignores how people actually use the room.

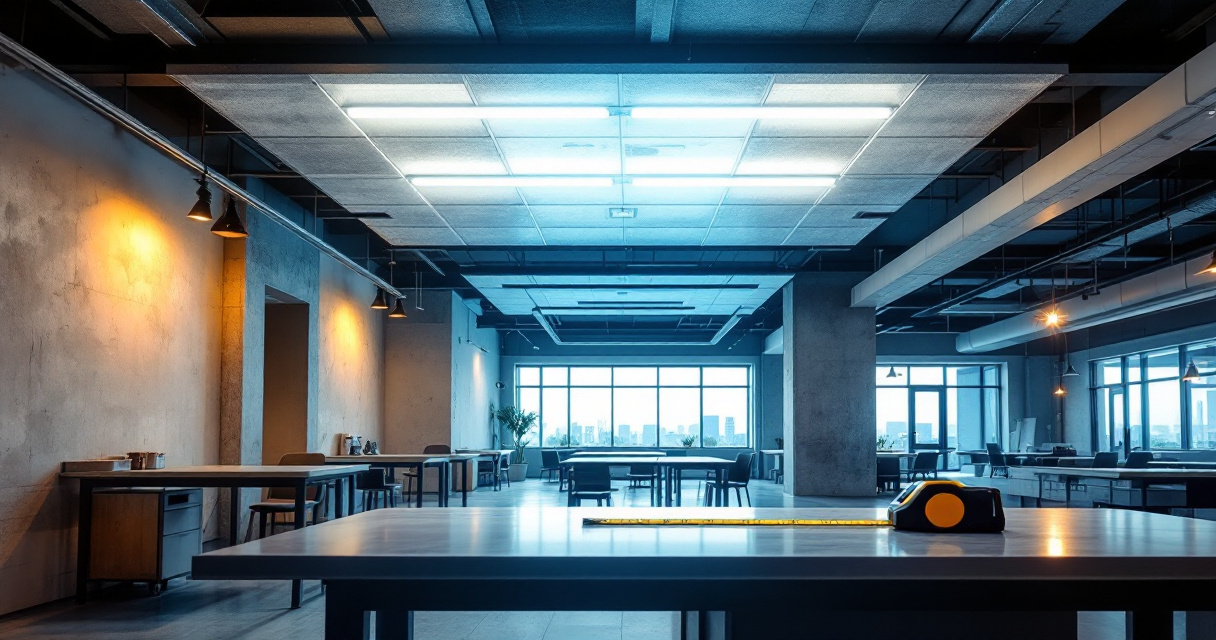

Common spacing mistakes that create glare, shadows, or wasted fixtures
Most layout problems come from copying a residential rule into a commercial grid. Drop ceilings look forgiving on paper, but bad spacing becomes obvious once rows are energized across a large area.
Mistakes to avoid
- Spacing fixtures evenly without checking beam spread
- Ignoring the work plane and using only full ceiling height
- Centering everything in the room while leaving dim perimeter zones
- Placing lights too close to HVAC diffusers or return grilles
- Mixing fixture sizes that break the ceiling rhythm
- Over-lighting small rooms with dense rows that increase glare and energy use
Glare often shows up when fewer high-output fixtures are used instead of more evenly distributed moderate-output fixtures. Shadows usually appear when rows are too far apart or when tall shelves interrupt the beam.
Key takeaway: Uniformity is usually more valuable than brute brightness in commercial interiors.
A quick quality check before installation
- Stand at the main entrance and check visual symmetry.
- Review lighting over task areas, not just open floor space.
- Confirm every fixture clears tiles, grid members, and services.
- Verify switching or controls match zones, daylight, and occupancy.
If you're ordering products after finalizing layout, visit jqzlighting.com to compare fixture formats against your grid plan and room type.
Why calculators can still mislead you
Online calculators are useful for a first pass, and competitors ranking for this topic often lead with them. Still, calculators rarely understand obstructions, merchandising, ceiling services, or the visual impact of a T-grid, so they shouldn't be the final decision-maker.
How Jqzlighting can support a cleaner commercial layout
A supplier helps most when product dimensions and output options fit the layout you've already engineered. Jqzlighting is especially relevant for commercial buyers who need fixture choices that match common suspended ceiling formats without forcing awkward spacing compromises.
Where Jqzlighting fits in the planning process
- During early layout, to confirm available panel or recessed fixture sizes
- During specification, to align output and form factor with room use
- During procurement, to keep one consistent visual language across multiple spaces
The Jqzlighting platform is most useful when you are coordinating across offices, retail zones, and back-of-house areas that need a consistent ceiling appearance. That matters for contractors and facility managers who want simpler installs and fewer last-minute substitutions.
Who should use which approach
| Need | Best approach |
|---|---|
| Fast concept for a standard office | use a simple spacing formula first |
| Detailed commercial fit-out | build layout around grid, tasks, and services |
| Multi-room project with fixture consistency needs | plan product selection early with Jqzlighting |
For many projects, the smart move is to draft the spacing plan first, then verify the fixture family before ordering. You can also head to jqzlighting.com once room dimensions, ceiling height, and fixture style are clear, which makes product matching faster for installers and buyers.
What to have ready before you request products
Bring your reflected ceiling plan, room dimensions, ceiling height, grid size, and any HVAC or sprinkler conflicts. That shortens back-and-forth and helps keep the final layout close to the original intent.
Conclusion
A good led drop ceiling lights spacing layout is built from mounting height, room function, and ceiling-grid logic, not guesswork. Start with a height-based spacing rule, refine it by task zones and obstacles, then match fixtures to the grid for a cleaner result. If you're specifying panels or recessed fixtures for a commercial project, review your room plan and product options together before ordering. For the next step, compare fixture formats, confirm grid compatibility, and use Jqzlighting when you want the layout and the product choice to work as one system.
